NH-385U

NH-385U-B-N-R-1/4-RS

$494.41

Attribute: NH-385U-B-N-R-1/4-RS (04MP-04FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT

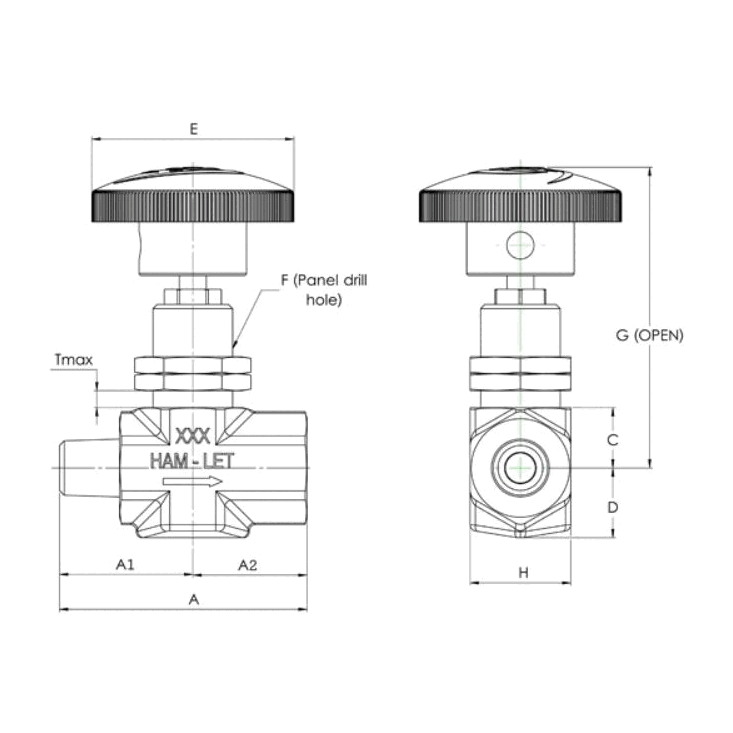

A (MM)	58.5
A1 (MM)	31.5
A2 (MM)	27
A3 (MM)	28.5
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20
G (MM)	78.4
H (MM)	23.8
T (MM)	12

NH-385U-B-N-V-1/4-RS

$494.41

Attribute: NH-385U-B-N-V-1/4-RS (04MP-04FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	58.5
A1 (MM)	31.5
A2 (MM)	27
A3 (MM)	28.5
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20
G (MM)	78.4
H (MM)	23.8
T (MM)	12

NH-385U-SS-N-K-1/4-RS

$391.90

Attribute: NH-385U-SS-N-K-1/4-RS (04MP-04FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	SOFT SEAT PCTFE STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.40
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	58.5
A1 (MM)	31.5
A2 (MM)	27.0
A3 (MM)	28.5
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20.0
G (MM)	78.4
H (MM)	23.8
T (MM)	12.0

NH-385U-SS-N-NR-1/4-RAS

$459.02

Attribute: NH-385U-SS-N-NR-1/4-RAS (04MP-04...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	NON-ROTATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK ALUMINUM
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.40
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	58.5
A1 (MM)	31.5
A2 (MM)	27.0
A3 (MM)	28.5
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20.0
G (MM)	78.4
H (MM)	23.8
T (MM)	12.0

NH-385U-SS-N-R-1/2-M

$1,014.03

Attribute: NH-385U-SS-N-R-1/2-M (08MP-08FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	65.0
F (MM)	26.0
G (MM)	94.0
H (MM)	30.2
T (MM)	22.0

NH-385U-SS-N-R-1/2-RS

$962.92

Attribute: NH-385U-SS-N-R-1/2-RS (08MP-08FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	47.8
F (MM)	26.0
G (MM)	105.6
H (MM)	30.2
T (MM)	22.0

NH-385U-SS-N-R-1/4-M

$382.16

Attribute: NH-385U-SS-N-R-1/4-M (04MP-04FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	58.5
A1 (MM)	31.5
A2 (MM)	27.0
A3 (MM)	28.5
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	65.0
F (MM)	20.0
G (MM)	66.8
H (MM)	23.8
T (MM)	12.0

NH-385U-SS-N-R-1/4-RS

$332.29

Attribute: NH-385U-SS-N-R-1/4-RS (04MP-04FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	58.5
A1 (MM)	31.5
A2 (MM)	27.0
A3 (MM)	28.5
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20.0
G (MM)	78.4
H (MM)	23.8
T (MM)	12.0

NH-385U-SS-N-R-3/8-M

$502.38

Attribute: NH-385U-SS-N-R-3/8-M (06MP-06FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	3/8″ MALE NPT
OUTLET CONNECTION (2)	3/8″ FEMALE NPT
A (MM)	56.5
A1 (MM)	28.5
A2 (MM)	28.0
A3 (MM)	28.5
B (MM)	44.5
C (MM)	14.3
D (MM)	16.5
E (MM)	65.0
F (MM)	20.0
G (MM)	66.8
H (MM)	23.8
T (MM)	12.0

NH-385U-SS-N-V-1/2-M

$1,014.03

Attribute: NH-385U-SS-N-V-1/2-M (08MP-08FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	65.0
F (MM)	26.0
G (MM)	94.0
H (MM)	30.2
T (MM)	22.0

NH-385U-SS-N-V-1/2-RS

$881.78

Attribute: NH-385U-SS-N-V-1/2-RS (08MP-08FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	47.8
F (MM)	26.0
G (MM)	105.6
H (MM)	30.2
T (MM)	22.0

NH-385U-SS-N-V-1/4-M

$382.00

Attribute: NH-385U-SS-N-V-1/4-M (04MP-04FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	58.5
A1 (MM)	31.5
A2 (MM)	27.0
A3 (MM)	28.5
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	65.0
F (MM)	20.0
G (MM)	66.8
H (MM)	23.8
T (MM)	12.0

NH-385U-SS-N-V-1/4-RS

$332.29

Attribute: NH-385U-SS-N-V-1/4-RS (04MP-04FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	58.5
A1 (MM)	31.5
A2 (MM)	27.0
A3 (MM)	28.5
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20.0
G (MM)	78.4
H (MM)	23.8
T (MM)	12.0

Connections	NPT, Other
Shape	Straight

ID	10139061
Category	Instrumentation Valves
