NH-380U-90D-ANGLE

NH-380U-B-N-R-1/4-RS-A

$182.89

Attribute: NH-380U-B-N-R-1/4-RS-A (04MP-04M...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT

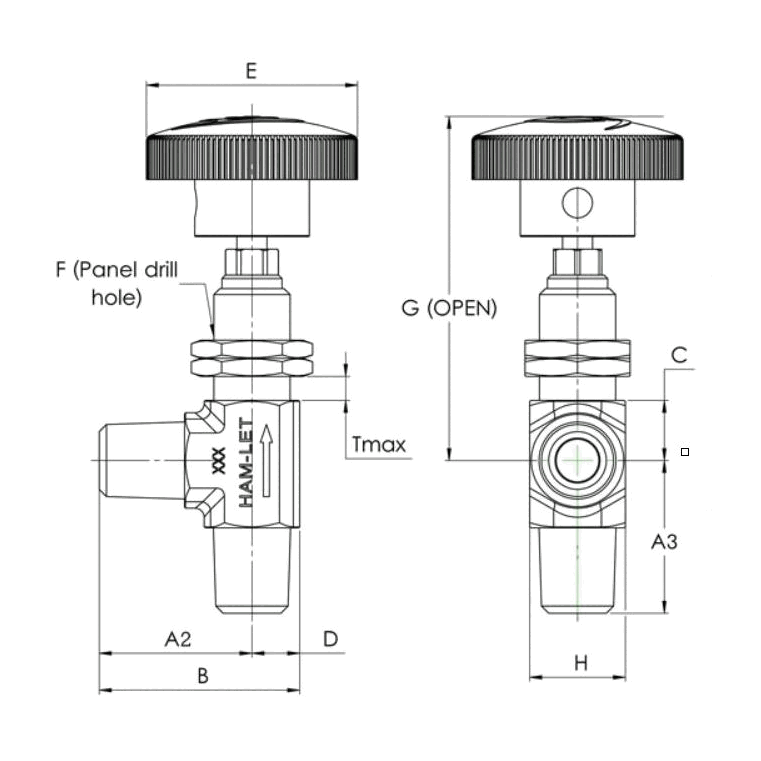

A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10
D (MM)	7.95
E (MM)	35.1
F (MM)	13
G (MM)	63.5
H (MM)	15.9
T (MM)	10

NH-380U-B-N-V-1/4-RS-A

$241.52

Attribute: NH-380U-B-N-V-1/4-RS-A (04MP-04M...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10
D (MM)	7.95
E (MM)	35.1
F (MM)	13
G (MM)	63.5
H (MM)	15.9
T (MM)	10

NH-380U-SS-N-R-1/2-RS-A

$905.56

Attribute: NH-380U-SS-N-R-1/2-RS-A (08MP-08...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	47.8
F (MM)	26.0
G (MM)	105.6
H (MM)	30.2
T (MM)	22.0

NH-380U-SS-N-R-1/4-M-A

$274.60

Attribute: NH-380U-SS-N-R-1/4-M-A (04MP-04M...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	50.0
F (MM)	13.0
G (MM)	56.0
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-R-1/4-RS-A

$238.83

Attribute: NH-380U-SS-N-R-1/4-RS-A (04MP-04...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	35.1
F (MM)	13.0
G (MM)	63.5
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-R-1/8-RS-A

$276.60

Attribute: NH-380U-SS-N-R-1/8-RS-A (02MP-02...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/8″ MALE NPT
OUTLET CONNECTION (2)	1/8″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	35.1
F (MM)	13.0
G (MM)	63.5
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-V-1/2-RS-A

$905.56

Attribute: NH-380U-SS-N-V-1/2-RS-A (08MP-08...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	47.8
F (MM)	26.0
G (MM)	105.6
H (MM)	30.2
T (MM)	22.0

NH-380U-SS-N-V-1/4-M-A

$299.90

Attribute: NH-380U-SS-N-V-1/4-M-A (04MP-04M...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	50.0
F (MM)	13.0
G (MM)	56.0
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-V-1/4-RS-A

$260.83

Attribute: NH-380U-SS-N-V-1/4-RS-A (04MP-04...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	35.1
F (MM)	13.0
G (MM)	63.5
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-V-1/8-M-A

$318.16

Attribute: NH-380U-SS-N-V-1/8-M-A (02MP-02M...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/8″ MALE NPT
OUTLET CONNECTION (2)	1/8″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	50.0
F (MM)	13.0
G (MM)	56.0
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-V-1/8-RS-A

$276.60

Attribute: NH-380U-SS-N-V-1/8-RS-A (02MP-02...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/8″ MALE NPT
OUTLET CONNECTION (2)	1/8″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	35.1
F (MM)	13.0
G (MM)	63.5
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-V-3/8-M-A

$441.59

Attribute: NH-380U-SS-N-V-3/8-M-A (06MP-06M...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	3/8″ MALE NPT
OUTLET CONNECTION (2)	3/8″ MALE NPT
A (MM)	57.0
A1 (MM)	28.5
A2 (MM)	28.5
A3 (MM)	28.5
B (MM)	45.0
C (MM)	14.3
D (MM)	16.5
E (MM)	65.0
F (MM)	20.0
G (MM)	66.8
H (MM)	23.8
T (MM)	12.0

Connections	NPT, Other
Shape	Elbow

ID	10139046
Category	Instrumentation Valves
