NH-380U

NH-380U-B-N-R-1/2-RS

$324.16

Attribute: NH-380U-B-N-R-1/2-RS (08MP-08MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT

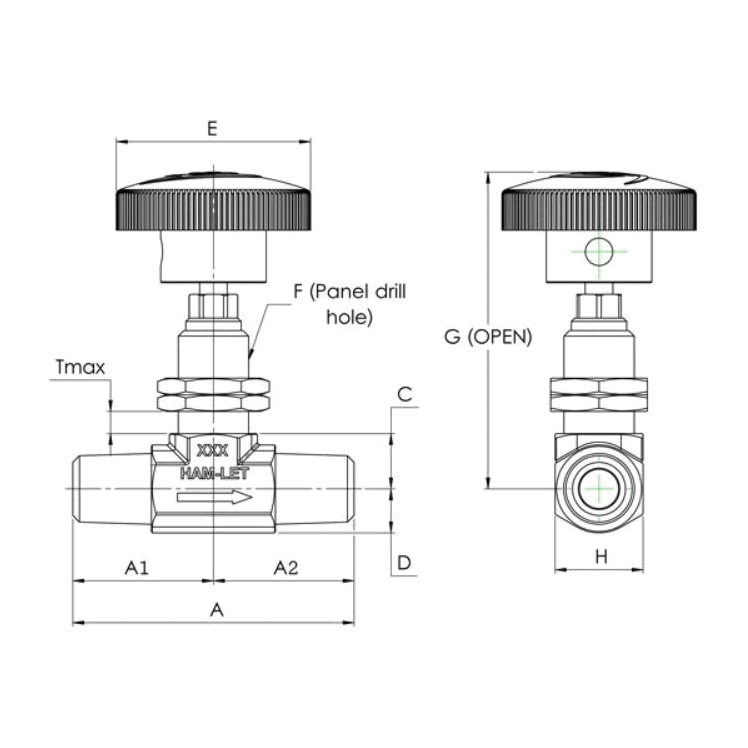

A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	47.8
F (MM)	26.0
G (MM)	105.6
H (MM)	30.2
T (MM)	22.0

NH-380U-B-N-R-1/4-M

$194.73

Attribute: NH-380U-B-N-R-1/4-M (04MP-04MP-N...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	METAL BAR
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10
D (MM)	7.95
E (MM)	50
F (MM)	13
G (MM)	56
H (MM)	15.9
T (MM)	10

NH-380U-B-N-R-1/4-RS

$346.73

Attribute: NH-380U-B-N-R-1/4-RS (04MP-04MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10
D (MM)	7.95
E (MM)	35.1
F (MM)	13
G (MM)	63.5
H (MM)	15.9
T (MM)	10

NH-380U-B-N-R-1/8-RS

$341.02

Attribute: NH-380U-B-N-R-1/8-RS (02MP-02MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/8″ MALE NPT
OUTLET CONNECTION (2)	1/8″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10
D (MM)	7.95
E (MM)	35.1
F (MM)	13
G (MM)	63.5
H (MM)	15.9
T (MM)	10

NH-380U-B-N-R-3/8-RS

$510.73

Attribute: NH-380U-B-N-R-3/8-RS (06MP-06MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	3/8″ MALE NPT
OUTLET CONNECTION (2)	3/8″ MALE NPT
A (MM)	57.0
A1 (MM)	28.5
A2 (MM)	28.5
A3 (MM)	28.5
B (MM)	45.0
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20.0
G (MM)	78.4
H (MM)	23.8
T (MM)	12.0

NH-380U-B-N-V-1/4-RS

$346.73

Attribute: NH-380U-B-N-V-1/4-RS (04MP-04MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10
D (MM)	7.95
E (MM)	35.1
F (MM)	13
G (MM)	63.5
H (MM)	15.9
T (MM)	10

NH-380U-SS-N-R-1/2-M

$964.29

Attribute: NH-380U-SS-N-R-1/2-M (08MP-08MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	65.0
F (MM)	26.0
G (MM)	94.0
H (MM)	30.2
T (MM)	22.0

NH-380U-SS-N-R-1/2-RS

$838.48

Attribute: NH-380U-SS-N-R-1/2-RS (08MP-08MP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	47.8
F (MM)	26.0
G (MM)	105.6
H (MM)	30.2
T (MM)	22.0

NH-380U-SS-N-R-1/4-M

$254.22

Attribute: NH-380U-SS-N-R-1/4-M (04MP-04MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	50.0
F (MM)	13.0
G (MM)	56.0
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-R-1/4-RS

$221.11

Attribute: NH-380U-SS-N-R-1/4-RS (04MP-04MP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.40
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	35.1
F (MM)	13.0
G (MM)	63.5
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-R-1/8-M

$269.75

Attribute: NH-380U-SS-N-R-1/8-M (02MP-02MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/8″ MALE NPT
OUTLET CONNECTION (2)	1/8″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	50.0
F (MM)	13.0
G (MM)	56.0
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-R-1/8-RS

$234.57

Attribute: NH-380U-SS-N-R-1/8-RS (02MP-02MP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/8″ MALE NPT
OUTLET CONNECTION (2)	1/8″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	35.10
F (MM)	13.0
G (MM)	63.5
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-R-3/8-M

$374.38

Attribute: NH-380U-SS-N-R-3/8-M (06MP-06MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	3/8″ MALE NPT
OUTLET CONNECTION (2)	3/8″ MALE NPT
A (MM)	57.0
A1 (MM)	28.5
A2 (MM)	28.5
A3 (MM)	28.5
B (MM)	45.0
C (MM)	14.3
D (MM)	16.5
E (MM)	65.0
F (MM)	20.0
G (MM)	66.8
H (MM)	23.8
T (MM)	12.0

NH-380U-SS-N-R-3/8-RS

$355.52

Attribute: NH-380U-SS-N-R-3/8-RS (06MP-06MP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	3/8″ MALE NPT
OUTLET CONNECTION (2)	3/8″ MALE NPT
A (MM)	57.0
A1 (MM)	28.5
A2 (MM)	28.5
A3 (MM)	28.5
B (MM)	45.0
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20.0
G (MM)	78.4
H (MM)	23.8
T (MM)	12.0

NH-380U-SS-N-V-1/2-RS

$767.84

Attribute: NH-380U-SS-N-V-1/2-RS (08MP-08MP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	47.8
F (MM)	26.0
G (MM)	105.6
H (MM)	30.2
T (MM)	22.0

NH-380U-SS-N-V-1/4-M

$254.22

Attribute: NH-380U-SS-N-V-1/4-M (04MP-04MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	50.0
F (MM)	13.0
G (MM)	56.0
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-V-1/4-RS

$221.11

Attribute: NH-380U-SS-N-V-1/4-RS (04MP-04MP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	35.1
F (MM)	13.0
G (MM)	63.5
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-V-1/8-M

$269.75

Attribute: NH-380U-SS-N-V-1/8-M (02MP-02MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/8″ MALE NPT
OUTLET CONNECTION (2)	1/8″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	50.0
F (MM)	13.0
G (MM)	56.0
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-V-1/8-RS

$234.57

Attribute: NH-380U-SS-N-V-1/8-RS (02MP-02MP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/8″ MALE NPT
OUTLET CONNECTION (2)	1/8″ MALE NPT
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.3
C (MM)	10.0
D (MM)	7.95
E (MM)	35.1
F (MM)	13.0
G (MM)	63.5
H (MM)	15.9
T (MM)	10.0

NH-380U-SS-N-V-3/8-M

$408.92

Attribute: NH-380U-SS-N-V-3/8-M (06MP-06MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	3/8″ MALE NPT
OUTLET CONNECTION (2)	3/8″ MALE NPT
A (MM)	57.0
A1 (MM)	28.5
A2 (MM)	28.5
A3 (MM)	28.5
B (MM)	45.0
C (MM)	14.3
D (MM)	16.5
E (MM)	65.0
F (MM)	20.0
G (MM)	66.8
H (MM)	23.8
T (MM)	12.0

NH-380U-SS-N-V-3/8-RS

$325.49

Attribute: NH-380U-SS-N-V-3/8-RS (06MP-06MP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	3/8″ MALE NPT
OUTLET CONNECTION (2)	3/8″ MALE NPT
A (MM)	57.0
A1 (MM)	28.5
A2 (MM)	28.5
A3 (MM)	28.5
B (MM)	45.0
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20.0
G (MM)	78.4
H (MM)	23.8
T (MM)	12.0

Connections	NPT, Other
Shape	Straight

ID	10139022
Category	Instrumentation Valves

Description

Description

Variations (21)

NH-380U-B-N-R-1/2-RS

NH-380U-B-N-R-1/4-M

NH-380U-B-N-R-1/4-RS

NH-380U-B-N-R-1/8-RS

NH-380U-B-N-R-3/8-RS

NH-380U-B-N-V-1/4-RS

NH-380U-SS-N-R-1/2-M

NH-380U-SS-N-R-1/2-RS

NH-380U-SS-N-R-1/4-M

NH-380U-SS-N-R-1/4-RS

NH-380U-SS-N-R-1/8-M

NH-380U-SS-N-R-1/8-RS

NH-380U-SS-N-R-3/8-M

NH-380U-SS-N-R-3/8-RS

NH-380U-SS-N-V-1/2-RS

NH-380U-SS-N-V-1/4-M

NH-380U-SS-N-V-1/4-RS

NH-380U-SS-N-V-1/8-M

NH-380U-SS-N-V-1/8-RS

NH-380U-SS-N-V-3/8-M

NH-380U-SS-N-V-3/8-RS

General Attributes

PDF Documents
