NH-310U

NH-310U-B-N-R-1/2-M

$802.29

Attribute: NH-310U-B-N-R-1/2-M (08FP-08FP-N...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	METAL BAR
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ FEMALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT

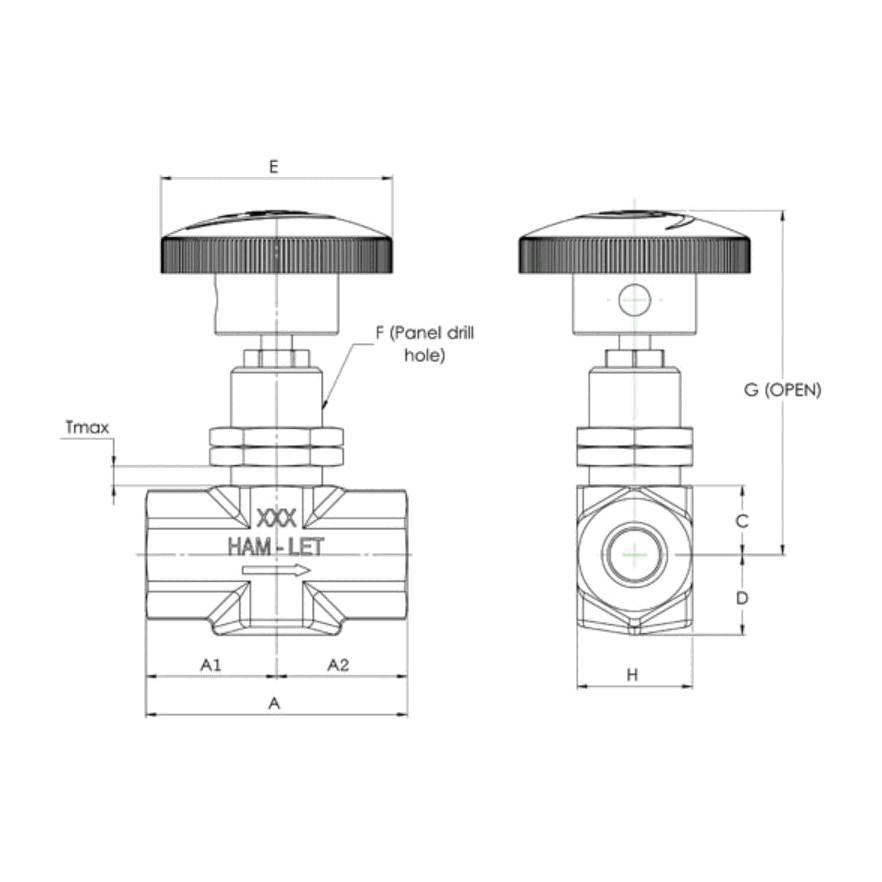

A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20
E (MM)	65
F (MM)	26
G (MM)	94
H (MM)	30.2
T (MM)	22

NH-310U-B-N-R-1/2-RS

$697.65

Attribute: NH-310U-B-N-R-1/2-RS (08FP-08FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ FEMALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20
E (MM)	47.8
F (MM)	26
G (MM)	105.6
H (MM)	30.2
T (MM)	22

NH-310U-B-N-R-1/4-M

$337.56

Attribute: NH-310U-B-N-R-1/4-M (04FP-04FP-N...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	METAL BAR
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ FEMALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	54
A1 (MM)	27
A2 (MM)	27
A3 (MM)	27
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	65
F (MM)	20
G (MM)	66.8
H (MM)	23.8
T (MM)	12

NH-310U-B-N-R-1/4-RS

$293.46

Attribute: NH-310U-B-N-R-1/4-RS (04FP-04FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ FEMALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	54
A1 (MM)	27
A2 (MM)	27
A3 (MM)	27
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20
G (MM)	78.4
H (MM)	23.8
T (MM)	12

NH-310U-B-N-R-3/8-RS

$595.37

Attribute: NH-310U-B-N-R-3/8-RS (06FP-06FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	3/8″ FEMALE NPT
OUTLET CONNECTION (2)	3/8″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20
E (MM)	47.8
F (MM)	26
G (MM)	105.6
H (MM)	30.2
T (MM)	22

NH-310U-B-N-V-1/2-M

$802.29

Attribute: NH-310U-B-N-V-1/2-M (08FP-08FP-N...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	METAL BAR
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ FEMALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20
E (MM)	65
F (MM)	26
G (MM)	94
H (MM)	30.2
T (MM)	22

NH-310U-B-N-V-1/2-RS

$697.65

Attribute: NH-310U-B-N-V-1/2-RS (08FP-08FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ FEMALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20
E (MM)	47.8
F (MM)	26
G (MM)	105.6
H (MM)	30.2
T (MM)	22

NH-310U-B-N-V-1/4-M

$337.49

Attribute: NH-310U-B-N-V-1/4-M (04FP-04FP-N...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	METAL BAR
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ FEMALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	54
A1 (MM)	27
A2 (MM)	27
A3 (MM)	27
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	65
F (MM)	20
G (MM)	66.8
H (MM)	23.8
T (MM)	12

NH-310U-B-N-V-1/4-RS

$293.46

Attribute: NH-310U-B-N-V-1/4-RS (04FP-04FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ FEMALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	54
A1 (MM)	27
A2 (MM)	27
A3 (MM)	27
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20
G (MM)	78.4
H (MM)	23.8
T (MM)	12

NH-310U-B-N-V-3/4-M

$1,224.60

Attribute: NH-310U-B-N-V-3/4-M (12FP-12FP-N...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	3/4″
HANDLE TYPE	METAL BAR
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	3/4″ FEMALE NPT
OUTLET CONNECTION (2)	3/4″ FEMALE NPT
A (MM)	36
A1 (MM)	48
A2 (MM)	48
C (MM)	19.5
D (MM)	20
E (MM)	65
F (MM)	26
G (MM)	94
H (MM)	30.2
T (MM)	22

NH-310U-B-N-V-3/4-RS

$1,064.92

Attribute: NH-310U-B-N-V-3/4-RS (12FP-12FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	3/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	3/4″ FEMALE NPT
OUTLET CONNECTION (2)	3/4″ FEMALE NPT
A (MM)	36
A1 (MM)	48
A2 (MM)	48
C (MM)	19.5
D (MM)	20
E (MM)	47.8
F (MM)	26
G (MM)	105.6
H (MM)	30.2
T (MM)	22

NH-310U-B-N-V-3/8-M

$514.48

Attribute: NH-310U-B-N-V-3/8-M (06FP-06FP-N...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	METAL BAR
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	3/8″ FEMALE NPT
OUTLET CONNECTION (2)	3/8″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20
E (MM)	65
F (MM)	26
G (MM)	94
H (MM)	30.2
T (MM)	22

NH-310U-B-N-V-3/8-RS

$513.65

Attribute: NH-310U-B-N-V-3/8-RS (06FP-06FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	3/8″ FEMALE NPT
OUTLET CONNECTION (2)	3/8″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20
E (MM)	47.8
F (MM)	26
G (MM)	105.6
H (MM)	30.2
T (MM)	22

NH-310U-SS-N-R-1/2-M

$902.57

Attribute: NH-310U-SS-N-R-1/2-M (08FP-08FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ FEMALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	65.0
F (MM)	26.0
G (MM)	94.0
H (MM)	30.2
T (MM)	22.0

NH-310U-SS-N-R-1/2-RS

$733.46

Attribute: NH-310U-SS-N-R-1/2-RS (08FP-08FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ FEMALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	47.8
F (MM)	26.0
G (MM)	105.6
H (MM)	30.2
T (MM)	22.0

NH-310U-SS-N-R-1/4-M

$354.89

Attribute: NH-310U-SS-N-R-1/4-M (04FP-04FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ FEMALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	54.0
A1 (MM)	27.0
A2 (MM)	27.0
A3 (MM)	27.0
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	65.0
F (MM)	20.0
G (MM)	66.8
H (MM)	23.8
T (MM)	12.0

NH-310U-SS-N-R-1/4-RS

$308.54

Attribute: NH-310U-SS-N-R-1/4-RS (04FP-04FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ FEMALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	54.0
A1 (MM)	27.0
A2 (MM)	27.0
A3 (MM)	27.0
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20.0
G (MM)	78.4
H (MM)	23.8
T (MM)	12.0

NH-310U-SS-N-R-1/8-M

$273.87

Attribute: NH-310U-SS-N-R-1/8-M (02FP-02FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/8″ FEMALE NPT
OUTLET CONNECTION (2)	1/8″ FEMALE NPT
A (MM)	41.2
A1 (MM)	20.6
A2 (MM)	20.6
A3 (MM)	20.6
B (MM)	28.5
C (MM)	10.0
D (MM)	7.95
E (MM)	50.0
F (MM)	13.0
G (MM)	56.0
H (MM)	15.9
T (MM)	10.0

NH-310U-SS-N-R-1/8-RS

$238.10

Attribute: NH-310U-SS-N-R-1/8-RS (02FP-02FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/8″ FEMALE NPT
OUTLET CONNECTION (2)	1/8″ FEMALE NPT
A (MM)	41.2
A1 (MM)	20.6
A2 (MM)	20.6
A3 (MM)	20.6
B (MM)	28.5
C (MM)	10.0
D (MM)	7.95
E (MM)	35.1
F (MM)	13.0
G (MM)	63.5
H (MM)	15.9
T (MM)	10.0

NH-310U-SS-N-R-3/4-RS

$1,440.16

Attribute: NH-310U-SS-N-R-3/4-RS (12FP-12FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	3/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	3/4″ FEMALE NPT
OUTLET CONNECTION (2)	3/4″ FEMALE NPT
A (MM)	36.0
A1 (MM)	48.0
A2 (MM)	48.0
C (MM)	19.5
D (MM)	20.0
E (MM)	47.8
F (MM)	26.0
G (MM)	105.6
H (MM)	30.2
T (MM)	22.0

NH-310U-SS-N-R-3/8-M

$674.95

Attribute: NH-310U-SS-N-R-3/8-M (06FP-06FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	3/8″ FEMALE NPT
OUTLET CONNECTION (2)	3/8″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	65.0
F (MM)	26.0
G (MM)	94.0
H (MM)	30.2
T (MM)	22.0

NH-310U-SS-N-R-3/8-RS

$586.92

Attribute: NH-310U-SS-N-R-3/8-RS (06FP-06FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	3/8″ FEMALE NPT
OUTLET CONNECTION (2)	3/8″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	47.8
F (MM)	26.0
G (MM)	105.6
H (MM)	30.2
T (MM)	22.0

NH-310U-SS-N-V-1/2-M

$843.46

Attribute: NH-310U-SS-N-V-1/2-M (08FP-08FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ FEMALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	65.0
F (MM)	26.0
G (MM)	94.0
H (MM)	30.2
T (MM)	22.0

NH-310U-SS-N-V-1/2-RS

$733.46

Attribute: NH-310U-SS-N-V-1/2-RS (08FP-08FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	1/2″ FEMALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	47.8
F (MM)	26.0
G (MM)	105.6
H (MM)	30.2
T (MM)	22.0

NH-310U-SS-N-V-1/4-M

$354.89

Attribute: NH-310U-SS-N-V-1/4-M (04FP-04FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ FEMALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	54.0
A1 (MM)	27.0
A2 (MM)	27.0
A3 (MM)	27.0
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	65.0
F (MM)	20.0
G (MM)	66.8
H (MM)	23.8
T (MM)	12.0

NH-310U-SS-N-V-1/4-RS

$308.54

Attribute: NH-310U-SS-N-V-1/4-RS (04FP-04FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/4″ FEMALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
A (MM)	54.0
A1 (MM)	27.0
A2 (MM)	27.0
A3 (MM)	27.0
B (MM)	43.5
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20.0
G (MM)	78.4
H (MM)	23.8
T (MM)	12.0

NH-310U-SS-N-V-1/8-M

$273.87

Attribute: NH-310U-SS-N-V-1/8-M (02FP-02FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/8″ FEMALE NPT
OUTLET CONNECTION (2)	1/8″ FEMALE NPT
A (MM)	41.2
A1 (MM)	20.6
A2 (MM)	20.6
A3 (MM)	20.6
B (MM)	28.5
C (MM)	10.0
D (MM)	7.95
E (MM)	50.0
F (MM)	13.0
G (MM)	56.0
H (MM)	15.9
T (MM)	10.0

NH-310U-SS-N-V-1/8-RS

$238.10

Attribute: NH-310U-SS-N-V-1/8-RS (02FP-02FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/8″ FEMALE NPT
OUTLET CONNECTION (2)	1/8″ FEMALE NPT
A (MM)	41.2
A1 (MM)	20.6
A2 (MM)	20.6
A3 (MM)	20.6
B (MM)	28.5
C (MM)	10.0
D (MM)	7.95
E (MM)	35.1
F (MM)	13.0
G (MM)	63.5
H (MM)	15.9
T (MM)	10.0

NH-310U-SS-N-V-3/4-M

$1,656.19

Attribute: NH-310U-SS-N-V-3/4-M (12FP-12FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	3/4″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	3/4″ FEMALE NPT
OUTLET CONNECTION (2)	3/4″ FEMALE NPT
A (MM)	36.0
A1 (MM)	48.0
A2 (MM)	48.0
C (MM)	19.5
D (MM)	20.0
E (MM)	65.0
F (MM)	26.0
G (MM)	94.0
H (MM)	30.2
T (MM)	22.0

NH-310U-SS-N-V-3/4-RS

$1,440.16

Attribute: NH-310U-SS-N-V-3/4-RS (12FP-12FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	3/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	3/4″ FEMALE NPT
OUTLET CONNECTION (2)	3/4″ FEMALE NPT
A (MM)	36.0
A1 (MM)	48.0
A2 (MM)	48.0
C (MM)	19.5
D (MM)	20.0
E (MM)	47.8
F (MM)	26.0
G (MM)	105.6
H (MM)	30.2
T (MM)	22.0

NH-310U-SS-N-V-3/8-M

$674.95

Attribute: NH-310U-SS-N-V-3/8-M (06FP-06FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	3/8″ FEMALE NPT
OUTLET CONNECTION (2)	3/8″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	65.0
F (MM)	26.0
G (MM)	94.0
H (MM)	30.2
T (MM)	22.0

NH-310U-SS-N-V-3/8-RS

$586.92

Attribute: NH-310U-SS-N-V-3/8-RS (06FP-06FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	STRAIGHT
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	3/8″ FEMALE NPT
OUTLET CONNECTION (2)	3/8″ FEMALE NPT
A (MM)	76.2
A1 (MM)	38.1
A2 (MM)	38.1
A3 (MM)	38.1
B (MM)	58.1
C (MM)	19.5
D (MM)	20.0
E (MM)	47.8
F (MM)	26.0
G (MM)	105.6
H (MM)	30.2
T (MM)	22.0

Connections	NPT, Other
Shape	Straight

ID	10138968
Category	Instrumentation Valves

Description

Description

Variations (32)

NH-310U-B-N-R-1/2-M

NH-310U-B-N-R-1/2-RS

NH-310U-B-N-R-1/4-M

NH-310U-B-N-R-1/4-RS

NH-310U-B-N-R-3/8-RS

NH-310U-B-N-V-1/2-M

NH-310U-B-N-V-1/2-RS

NH-310U-B-N-V-1/4-M

NH-310U-B-N-V-1/4-RS

NH-310U-B-N-V-3/4-M

NH-310U-B-N-V-3/4-RS

NH-310U-B-N-V-3/8-M

NH-310U-B-N-V-3/8-RS

NH-310U-SS-N-R-1/2-M

NH-310U-SS-N-R-1/2-RS

NH-310U-SS-N-R-1/4-M

NH-310U-SS-N-R-1/4-RS

NH-310U-SS-N-R-1/8-M

NH-310U-SS-N-R-1/8-RS

NH-310U-SS-N-R-3/4-RS

NH-310U-SS-N-R-3/8-M

NH-310U-SS-N-R-3/8-RS

NH-310U-SS-N-V-1/2-M

NH-310U-SS-N-V-1/2-RS

NH-310U-SS-N-V-1/4-M

NH-310U-SS-N-V-1/4-RS

NH-310U-SS-N-V-1/8-M

NH-310U-SS-N-V-1/8-RS

NH-310U-SS-N-V-3/4-M

NH-310U-SS-N-V-3/4-RS

NH-310U-SS-N-V-3/8-M

NH-310U-SS-N-V-3/8-RS

General Attributes

PDF Documents
