Description
INS-INS-NEEDLE VALVE, STRAIGHT FLOW. SINGLE FERRULE INS / ONE-LOK. INTEGRAL-BONNET NEEDLE VALVE
Description
Variations (5)
NH-300U-B-HL-R-1/4-RS
$343.14Attribute: NH-300U-B-HL-R-1/4-RS (04INS-04I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | ONE-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 1/4″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 4.4 |
| FLOW COEFFICIENT (CV) | 0.37 |
| INLET CONNECTION (1) | 1/4″ ONE-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ ONE-LOK INS |

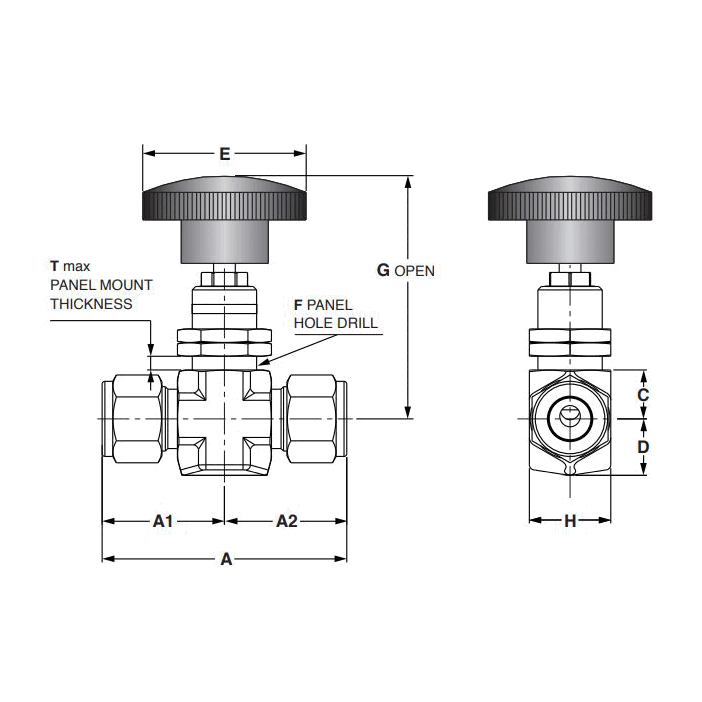

| A (MM) | 58.8 |
| A1 (MM) | 29.4 |
| A2 (MM) | 29.4 |
| A3 (MM) | 29.4 |
| B (MM) | 37.3 |
| C (MM) | 10.0 |
| D (MM) | 7.95 |
| E (MM) | 35.10 |
| F (MM) | 13.0 |
| G (MM) | 63.5 |
| H (MM) | 15.9 |
| T (MM) | 10.0 |
NH-300U-SS-HL-R-1/2-RS
$378.63Attribute: NH-300U-SS-HL-R-1/2-RS (08INS-08...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | ONE-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 1/2″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 1/2″ ONE-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ ONE-LOK INS |
| A (MM) | 71.6 |
| A1 (MM) | 35.8 |
| A2 (MM) | 35.8 |
| A3 (MM) | 35.8 |
| B (MM) | 52.3 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 47.8 |
| F (MM) | 20 |
| G (MM) | 78.4 |
| H (MM) | 23.8 |
| T (MM) | 12 |
NH-300U-SS-HL-R-3/8-RS
$366.00Attribute: NH-300U-SS-HL-R-3/8-RS (06INS-06...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | ONE-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 3/8″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 3/8″ ONE-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ ONE-LOK INS |
| A (MM) | 66.0 |
| A1 (MM) | 33.0 |
| A2 (MM) | 33.0 |
| A3 (MM) | 33.0 |
| B (MM) | 49.5 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 47.8 |
| F (MM) | 20.0 |
| G (MM) | 78.4 |
| H (MM) | 23.8 |
| T (MM) | 12.0 |
NH-300U-SS-HL-V-1/4-RS
$264.16Attribute: NH-300U-SS-HL-V-1/4-RS (04INS-04...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | ONE-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 1/4″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 4.4 |
| FLOW COEFFICIENT (CV) | 0.37 |
| INLET CONNECTION (1) | 1/4″ ONE-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ ONE-LOK INS |
| A (MM) | 58.8 |
| A1 (MM) | 29.4 |
| A2 (MM) | 29.4 |
| A3 (MM) | 29.4 |
| B (MM) | 37.3 |
| C (MM) | 10.0 |
| D (MM) | 7.95 |
| E (MM) | 35.10 |
| F (MM) | 13.0 |
| G (MM) | 63.5 |
| H (MM) | 15.9 |
| T (MM) | 10.0 |
NH-300U-SS-HL-V-3/8-RS
$366.00Attribute: NH-300U-SS-HL-V-3/8-RS (06INS-06...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | ONE-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 3/8″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 3/8″ ONE-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ ONE-LOK INS |
| A (MM) | 66.0 |
| A1 (MM) | 33.0 |
| A2 (MM) | 33.0 |
| A3 (MM) | 33.0 |
| B (MM) | 49.5 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 47.8 |
| F (MM) | 20.0 |
| G (MM) | 78.4 |
| H (MM) | 23.8 |
| T (MM) | 12.0 |
