NH-300U-90D-ANGLE

NH-300U-B-L-R-1/4-RS-A

$213.05

Attribute: NH-300U-B-L-R-1/4-RS-A (04INS-04...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS

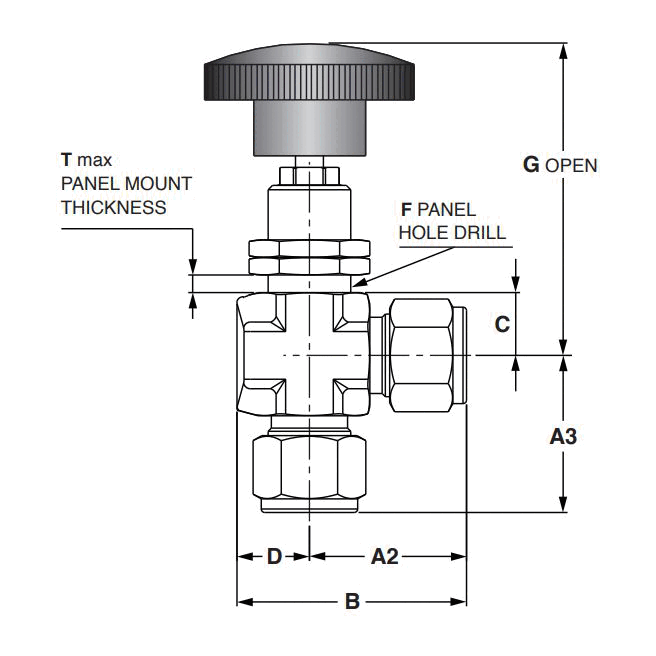

A (MM)	58.8
A1 (MM)	29.4
A2 (MM)	29.4
A3 (MM)	29.4
B (MM)	37.3
C (MM)	10
D (MM)	7.95
E (MM)	35.1
F (MM)	13
G (MM)	63.5
H (MM)	15.9
T (MM)	10

NH-300U-B-L-R-1/8-RS-A

$284.54

Attribute: NH-300U-B-L-R-1/8-RS-A (02INS-02...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	2
FLOW COEFFICIENT (CV)	0.09
INLET CONNECTION (1)	1/8″ LET-LOK INS
OUTLET CONNECTION (2)	1/8″ LET-LOK INS
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.4
C (MM)	10
D (MM)	7.95
E (MM)	35.1
F (MM)	13
G (MM)	63.5
H (MM)	15.9
T (MM)	10

NH-300U-B-L-R-3/8-RS-A

$290.44

Attribute: NH-300U-B-L-R-3/8-RS-A (06INS-06...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	3/8″ LET-LOK INS
OUTLET CONNECTION (2)	3/8″ LET-LOK INS
A (MM)	66
A1 (MM)	33
A2 (MM)	33
A3 (MM)	33
B (MM)	49.5
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20
G (MM)	78.4
H (MM)	23.8
T (MM)	12

NH-300U-B-L-V-1/4-RS-A

$253.65

Attribute: NH-300U-B-L-V-1/4-RS-A (04INS-04...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
A (MM)	58.8
A1 (MM)	29.4
A2 (MM)	29.4
A3 (MM)	29.4
B (MM)	37.3
C (MM)	10
D (MM)	7.95
E (MM)	35.1
F (MM)	13
G (MM)	63.5
H (MM)	15.9
T (MM)	10

NH-300U-B-L-V-1/8-RS-A

$284.54

Attribute: NH-300U-B-L-V-1/8-RS-A (02INS-02...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	BRASS
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	2
FLOW COEFFICIENT (CV)	0.09
INLET CONNECTION (1)	1/8″ LET-LOK INS
OUTLET CONNECTION (2)	1/8″ LET-LOK INS
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.4
C (MM)	10
D (MM)	7.95
E (MM)	35.1
F (MM)	13
G (MM)	63.5
H (MM)	15.9
T (MM)	10

NH-300U-SS-L-R-1/4-M-A

$306.60

Attribute: NH-300U-SS-L-R-1/4-M-A (04INS-04...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
A (MM)	58.8
A1 (MM)	29.4
A2 (MM)	29.4
A3 (MM)	29.4
B (MM)	37.3
C (MM)	10.0
D (MM)	7.95
E (MM)	50.0
F (MM)	13.0
G (MM)	56.0
H (MM)	15.9
T (MM)	10.0

NH-300U-SS-L-R-1/4-RS-A

$266.63

Attribute: NH-300U-SS-L-R-1/4-RS-A (04INS-0...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
A (MM)	58.8
A1 (MM)	29.4
A2 (MM)	29.4
A3 (MM)	29.4
B (MM)	37.3
C (MM)	10.0
D (MM)	7.95
E (MM)	35.1
F (MM)	13.0
G (MM)	63.5
H (MM)	15.9
T (MM)	10.0

NH-300U-SS-L-R-1/8-RS-A

$311.84

Attribute: NH-300U-SS-L-R-1/8-RS-A (02INS-0...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	2.0
FLOW COEFFICIENT (CV)	0.09
INLET CONNECTION (1)	1/8″ LET-LOK INS
OUTLET CONNECTION (2)	1/8″ LET-LOK INS
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.4
C (MM)	10.0
D (MM)	7.95
E (MM)	35.1
F (MM)	13.0
G (MM)	63.5
H (MM)	15.9
T (MM)	10.0

NH-300U-SS-L-R-3/4-RS-A

$950.35

Attribute: NH-300U-SS-L-R-3/4-RS-A (12INS-1...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	3/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	9.5
FLOW COEFFICIENT (CV)	1.8
INLET CONNECTION (1)	3/4″ LET-LOK INS
OUTLET CONNECTION (2)	3/4″ LET-LOK INS
A (MM)	97.0
A1 (MM)	48.5
A2 (MM)	48.5
A3 (MM)	48.5
B (MM)	68.5
C (MM)	19.5
D (MM)	20.0
E (MM)	47.8
F (MM)	26.0
G (MM)	105.6
H (MM)	30.2
T (MM)	22.0

NH-300U-SS-L-R-3/8-M-A

$463.90

Attribute: NH-300U-SS-L-R-3/8-M-A (06INS-06...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	3/8″ LET-LOK INS
OUTLET CONNECTION (2)	3/8″ LET-LOK INS
A (MM)	66.0
A1 (MM)	33.0
A2 (MM)	33.0
A3 (MM)	33.0
B (MM)	49.5
C (MM)	14.3
D (MM)	16.5
E (MM)	65.0
F (MM)	20.0
G (MM)	66.8
H (MM)	23.8
T (MM)	12.0

NH-300U-SS-L-R-3/8-RS-A

$369.43

Attribute: NH-300U-SS-L-R-3/8-RS-A (06INS-0...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	REGULATING STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	3/8″ LET-LOK INS
OUTLET CONNECTION (2)	3/8″ LET-LOK INS
A (MM)	66.0
A1 (MM)	33.0
A2 (MM)	33.0
A3 (MM)	33.0
B (MM)	49.5
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20.0
G (MM)	78.4
H (MM)	23.8
T (MM)	12.0

NH-300U-SS-L-V-1/2-M-A

$479.90

Attribute: NH-300U-SS-L-V-1/2-M-A (08INS-08...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/2″ LET-LOK INS
OUTLET CONNECTION (2)	1/2″ LET-LOK INS
A (MM)	71.6
A1 (MM)	35.8
A2 (MM)	35.8
A3 (MM)	35.8
B (MM)	52.3
C (MM)	14.3
D (MM)	16.5
E (MM)	65.0
F (MM)	20.0
G (MM)	66.8
H (MM)	23.8
T (MM)	12.0

NH-300U-SS-L-V-1/2-RS-A

$382.16

Attribute: NH-300U-SS-L-V-1/2-RS-A (08INS-0...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/2″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	1/2″ LET-LOK INS
OUTLET CONNECTION (2)	1/2″ LET-LOK INS
A (MM)	71.6
A1 (MM)	35.8
A2 (MM)	35.8
A3 (MM)	35.8
B (MM)	52.3
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20.0
G (MM)	78.4
H (MM)	23.8
T (MM)	12.0

NH-300U-SS-L-V-1/4-M-A

$334.86

Attribute: NH-300U-SS-L-V-1/4-M-A (04INS-04...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
A (MM)	58.8
A1 (MM)	29.4
A2 (MM)	29.4
A3 (MM)	29.4
B (MM)	37.3
C (MM)	10.0
D (MM)	7.95
E (MM)	50.0
F (MM)	13.0
G (MM)	56.0
H (MM)	15.9
T (MM)	10.0

NH-300U-SS-L-V-1/4-RS-A

$291.14

Attribute: NH-300U-SS-L-V-1/4-RS-A (04INS-0...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/4″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	4.4
FLOW COEFFICIENT (CV)	0.37
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
A (MM)	58.8
A1 (MM)	29.4
A2 (MM)	29.4
A3 (MM)	29.4
B (MM)	37.3
C (MM)	10.0
D (MM)	7.95
E (MM)	35.1
F (MM)	13.0
G (MM)	63.5
H (MM)	15.9
T (MM)	10.0

NH-300U-SS-L-V-1/8-M-A

$358.54

Attribute: NH-300U-SS-L-V-1/8-M-A (02INS-02...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	2.0
FLOW COEFFICIENT (CV)	0.09
INLET CONNECTION (1)	1/8″ LET-LOK INS
OUTLET CONNECTION (2)	1/8″ LET-LOK INS
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.4
C (MM)	10.0
D (MM)	7.95
E (MM)	50.0
F (MM)	13.0
G (MM)	56.0
H (MM)	15.9
T (MM)	10.0

NH-300U-SS-L-V-1/8-RS-A

$311.84

Attribute: NH-300U-SS-L-V-1/8-RS-A (02INS-0...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	1/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	2.0
FLOW COEFFICIENT (CV)	0.09
INLET CONNECTION (1)	1/8″ LET-LOK INS
OUTLET CONNECTION (2)	1/8″ LET-LOK INS
A (MM)	50.8
A1 (MM)	25.4
A2 (MM)	25.4
A3 (MM)	25.4
B (MM)	33.4
C (MM)	10.0
D (MM)	7.95
E (MM)	35.1
F (MM)	13.0
G (MM)	63.5
H (MM)	15.9
T (MM)	10.0

NH-300U-SS-L-V-3/8-M-A

$463.90

Attribute: NH-300U-SS-L-V-3/8-M-A (06INS-06...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	METAL BAR (316SS)
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	3/8″ LET-LOK INS
OUTLET CONNECTION (2)	3/8″ LET-LOK INS
A (MM)	66.0
A1 (MM)	33.0
A2 (MM)	33.0
A3 (MM)	33.0
B (MM)	49.5
C (MM)	14.3
D (MM)	16.5
E (MM)	65.0
F (MM)	20.0
G (MM)	66.8
H (MM)	23.8
T (MM)	12.0

NH-300U-SS-L-V-3/8-RS-A

$369.43

Attribute: NH-300U-SS-L-V-3/8-RS-A (06INS-0...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-3 (MAWP 5000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
STEM DESIGNATOR	V STEM
END CONNECTION SIZE	3/8″
HANDLE TYPE	ROUND BLACK PLASTIC
PATTERN	90
TREATMENT	STANDARD
ORIFICE (MM)	6.4
FLOW COEFFICIENT (CV)	0.73
INLET CONNECTION (1)	3/8″ LET-LOK INS
OUTLET CONNECTION (2)	3/8″ LET-LOK INS
A (MM)	66.0
A1 (MM)	33.0
A2 (MM)	33.0
A3 (MM)	33.0
B (MM)	49.5
C (MM)	14.3
D (MM)	16.5
E (MM)	47.8
F (MM)	20.0
G (MM)	78.4
H (MM)	23.8
T (MM)	12.0

Connections	Instrumentation
Shape	Elbow

ID	10138938
Category	Instrumentation Valves

Description

Description

Variations (19)

NH-300U-B-L-R-1/4-RS-A

NH-300U-B-L-R-1/8-RS-A

NH-300U-B-L-R-3/8-RS-A

NH-300U-B-L-V-1/4-RS-A

NH-300U-B-L-V-1/8-RS-A

NH-300U-SS-L-R-1/4-M-A

NH-300U-SS-L-R-1/4-RS-A

NH-300U-SS-L-R-1/8-RS-A

NH-300U-SS-L-R-3/4-RS-A

NH-300U-SS-L-R-3/8-M-A

NH-300U-SS-L-R-3/8-RS-A

NH-300U-SS-L-V-1/2-M-A

NH-300U-SS-L-V-1/2-RS-A

NH-300U-SS-L-V-1/4-M-A

NH-300U-SS-L-V-1/4-RS-A

NH-300U-SS-L-V-1/8-M-A

NH-300U-SS-L-V-1/8-RS-A

NH-300U-SS-L-V-3/8-M-A

NH-300U-SS-L-V-3/8-RS-A

General Attributes

PDF Documents
