Attributes
| Part Number | 4001-12-VG109 |
|---|---|
| Is Series Page | 0 |
Description

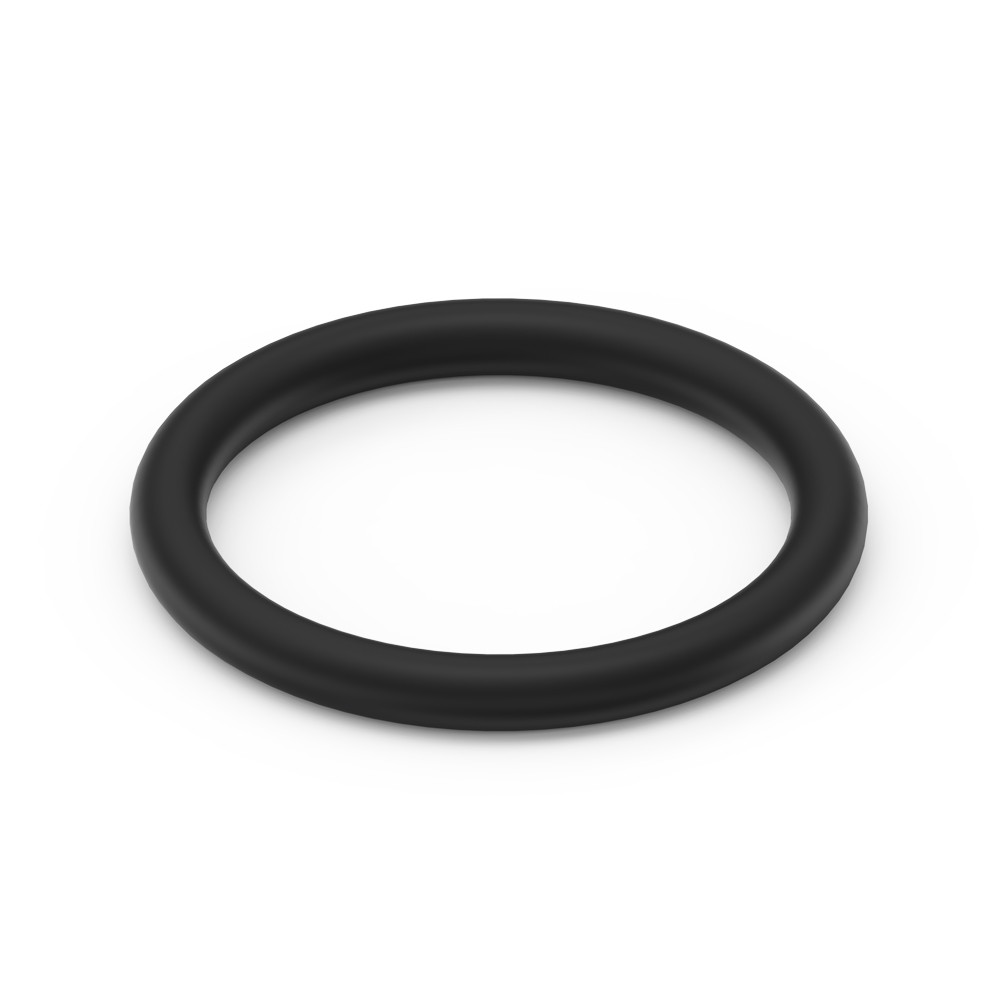

VG109 Fluorocarbon, SAE ORB Seal for Dash Size -12 O-Ring Boss
Specifications
| Specifications | {"Nominal OD":"3/4\"","Exact OD":"1.156\"","Exact ID":"0.924\"","Exact Width":"0.116\"","Color":"Black","Seal Code":"VG109","Seal Material":"VG109 (Fluorocarbon)","Temperature":"-15°F to 400°F","Dash Number":"-912","Dash Size":"-12","Seal Hardness":"90 Durometer"} |
|---|---|
| Application & Performance | {"Chemical Resistance":"Mineral oils, fuels, aliphatic/aromatic hydrocarbons, chlorinated hydrocarbons, silicone oils, and nonflammable hydraulic fluids","Not Recommended For":"Glycol-based brake fluids, ammonia gas, amines, alkalis, superheated steam, and low molecular weight organic acids (formic and acetic acids)"} |
| Shape | O-Ring |
