Description

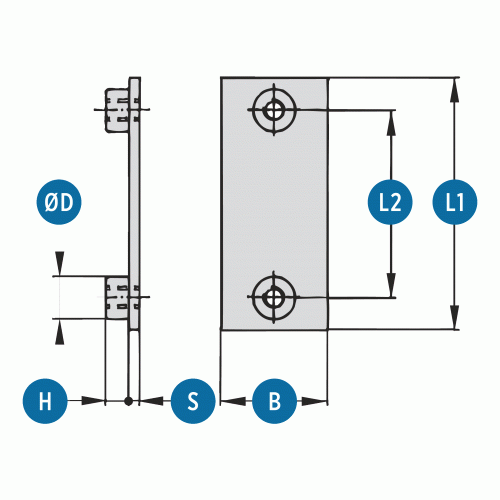

Standard Series Single Weld Plate Metric
Description
Variations (5)
AWP-S4-U-PCS
$4.78Attribute: AWP-S4-U-PCS (Std Sgl Weld Plate...)
Stock Status: True
| GROUP | 4 |
|---|---|
| L1 | 2.36 |
| L2 | 1.57 |
| B | 1.18 |
| S | 0.12 |
| H | 0.26 |
| D | 0.47 |
| MATERIAL | PHOS STEEL |
AWP-S5-U-PCS
$7.31Attribute: AWP-S5-U-PCS (Std Sgl Weld Plate...)
Stock Status: True
| GROUP | 5 |
|---|---|
| L1 | 2.8 |
| L2 | 2.05 |
| B | 1.18 |
| S | 0.12 |
| H | 0.26 |
| D | 0.47 |
| MATERIAL | PHOS STEEL |
AWP-S6-U-PCS
$5.82Attribute: AWP-S6-U-PCS (Std Sgl Weld Plate...)
Stock Status: True
| GROUP | 6 |
|---|---|
| L1 | 3.46 |
| L2 | 2.6 |
| B | 1.18 |
| S | 0.12 |
| H | 0.26 |
| D | 0.47 |
| MATERIAL | PHOS STEEL |
AWP-S7-U-PCS
$16.83Attribute: AWP-S7-U-PCS (Std Sgl Weld Plate...)
Stock Status: True
| GROUP | 7 |
|---|---|
| L1 | 4.8 |
| L2 | 3.7 |
| B | 1.18 |
| S | 0.2 |
| H | 0.26 |
| D | 0.47 |
| MATERIAL | PHOS STEEL |
AWP-S8-U-PCS
$18.23Attribute: AWP-S8-U-PCS (Std Sgl Weld Plate...)
Stock Status: True
| GROUP | 8 |
|---|---|
| L1 | 5.83 |
| L2 | 4.72 |
| B | 1.18 |
| S | 0.2 |
| H | 0.26 |
| D | 0.47 |
| MATERIAL | PHOS STEEL |
General Attributes
| Connections | Other |
|---|---|
| Shape | Other |
