Description

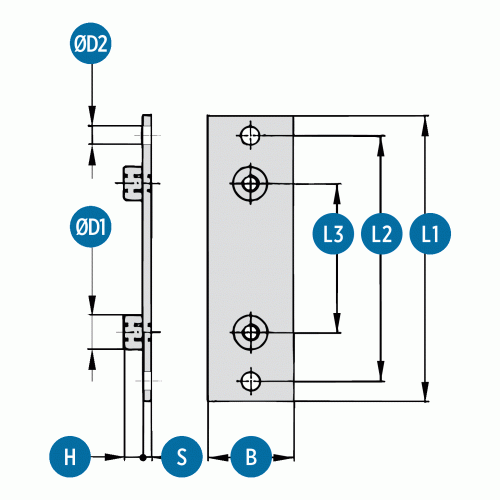

Standard Series Elongated Weld Plate Metric
Description
Variations (40)
AWPE-S1-M-PCS
$0.00Attribute: AWPE-S1-M-PCS (Std Elong Weld Pl...)
Stock Status: True
| GROUP | 1 |
|---|---|
| L1 | 64 |
| L2 | 20 |
| L3 | 50 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | PHOS STEEL |
AWPE-S1-M-S4
$0.00Attribute: AWPE-S1-M-S4 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 1 |
|---|---|
| L1 | 64 |
| L2 | 20 |
| L3 | 50 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 304-SS |
AWPE-S1-M-S6
$0.00Attribute: AWPE-S1-M-S6 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 1 |
|---|---|
| L1 | 64 |
| L2 | 20 |
| L3 | 50 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 316-SS |
AWPE-S1-M-UP
$0.00Attribute: AWPE-S1-M-UP (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 1 |
|---|---|
| L1 | 64 |
| L2 | 20 |
| L3 | 50 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | UNPLATED |
AWPE-S1-M-ZN
$0.00Attribute: AWPE-S1-M-ZN (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 1 |
|---|---|
| L1 | 64 |
| L2 | 20 |
| L3 | 50 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | ZINC-NICKEL |
AWPE-S2-M-PCS
$0.00Attribute: AWPE-S2-M-PCS (Std Elong Weld Pl...)
Stock Status: True
| GROUP | 2 |
|---|---|
| L1 | 70 |
| L2 | 26 |
| L3 | 56 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | PHOS STEEL |
AWPE-S2-M-S4
$0.00Attribute: AWPE-S2-M-S4 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 2 |
|---|---|
| L1 | 70 |
| L2 | 26 |
| L3 | 56 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 304-SS |
AWPE-S2-M-S6
$0.00Attribute: AWPE-S2-M-S6 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 2 |
|---|---|
| L1 | 70 |
| L2 | 26 |
| L3 | 56 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 316-SS |
AWPE-S2-M-UP
$0.00Attribute: AWPE-S2-M-UP (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 2 |
|---|---|
| L1 | 70 |
| L2 | 26 |
| L3 | 56 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | UNPLATED |
AWPE-S2-M-ZN
$0.00Attribute: AWPE-S2-M-ZN (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 2 |
|---|---|
| L1 | 70 |
| L2 | 26 |
| L3 | 56 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | ZINC-NICKEL |
AWPE-S3-M-PCS
$0.00Attribute: AWPE-S3-M-PCS (Std Elong Weld Pl...)
Stock Status: True
| GROUP | 3 |
|---|---|
| L1 | 78 |
| L2 | 33 |
| L3 | 64 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | PHOS STEEL |
AWPE-S3-M-S4
$0.00Attribute: AWPE-S3-M-S4 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 3 |
|---|---|
| L1 | 78 |
| L2 | 33 |
| L3 | 64 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 304-SS |
AWPE-S3-M-S6
$0.00Attribute: AWPE-S3-M-S6 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 3 |
|---|---|
| L1 | 78 |
| L2 | 33 |
| L3 | 64 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 316-SS |
AWPE-S3-M-UP
$0.00Attribute: AWPE-S3-M-UP (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 3 |
|---|---|
| L1 | 78 |
| L2 | 33 |
| L3 | 64 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | UNPLATED |
AWPE-S3-M-ZN
$0.00Attribute: AWPE-S3-M-ZN (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 3 |
|---|---|
| L1 | 78 |
| L2 | 33 |
| L3 | 64 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | ZINC-NICKEL |
AWPE-S4-M-PCS
$0.00Attribute: AWPE-S4-M-PCS (Std Elong Weld Pl...)
Stock Status: True
| GROUP | 4 |
|---|---|
| L1 | 87 |
| L2 | 40 |
| L3 | 73 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | PHOS STEEL |
AWPE-S4-M-S4
$0.00Attribute: AWPE-S4-M-S4 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 4 |
|---|---|
| L1 | 87 |
| L2 | 40 |
| L3 | 73 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 304-SS |
AWPE-S4-M-S6
$0.00Attribute: AWPE-S4-M-S6 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 4 |
|---|---|
| L1 | 87 |
| L2 | 40 |
| L3 | 73 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 316-SS |
AWPE-S4-M-UP
$0.00Attribute: AWPE-S4-M-UP (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 4 |
|---|---|
| L1 | 87 |
| L2 | 40 |
| L3 | 73 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | UNPLATED |
AWPE-S4-M-ZN
$0.00Attribute: AWPE-S4-M-ZN (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 4 |
|---|---|
| L1 | 87 |
| L2 | 40 |
| L3 | 73 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | ZINC-NICKEL |
AWPE-S5-M-PCS
$0.00Attribute: AWPE-S5-M-PCS (Std Elong Weld Pl...)
Stock Status: True
| GROUP | 5 |
|---|---|
| L1 | 100 |
| L2 | 52 |
| L3 | 86 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | PHOS STEEL |
AWPE-S5-M-S4
$0.00Attribute: AWPE-S5-M-S4 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 5 |
|---|---|
| L1 | 100 |
| L2 | 52 |
| L3 | 86 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 304-SS |
AWPE-S5-M-S6
$0.00Attribute: AWPE-S5-M-S6 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 5 |
|---|---|
| L1 | 100 |
| L2 | 52 |
| L3 | 86 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 316-SS |
AWPE-S5-M-UP
$0.00Attribute: AWPE-S5-M-UP (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 5 |
|---|---|
| L1 | 100 |
| L2 | 52 |
| L3 | 86 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | UNPLATED |
AWPE-S5-M-ZN
$0.00Attribute: AWPE-S5-M-ZN (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 5 |
|---|---|
| L1 | 100 |
| L2 | 52 |
| L3 | 86 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | ZINC-NICKEL |
AWPE-S6-M-PCS
$0.00Attribute: AWPE-S6-M-PCS (Std Elong Weld Pl...)
Stock Status: True
| GROUP | 6 |
|---|---|
| L1 | 115 |
| L2 | 66 |
| L3 | 100 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | PHOS STEEL |
AWPE-S6-M-S4
$0.00Attribute: AWPE-S6-M-S4 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 6 |
|---|---|
| L1 | 115 |
| L2 | 66 |
| L3 | 100 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 304-SS |
AWPE-S6-M-S6
$0.00Attribute: AWPE-S6-M-S6 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 6 |
|---|---|
| L1 | 115 |
| L2 | 66 |
| L3 | 100 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 316-SS |
AWPE-S6-M-UP
$0.00Attribute: AWPE-S6-M-UP (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 6 |
|---|---|
| L1 | 115 |
| L2 | 66 |
| L3 | 100 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | UNPLATED |
AWPE-S6-M-ZN
$0.00Attribute: AWPE-S6-M-ZN (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 6 |
|---|---|
| L1 | 115 |
| L2 | 66 |
| L3 | 100 |
| B | 30 |
| S | 3 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | ZINC-NICKEL |
AWPE-S7-M-PCS
$0.00Attribute: AWPE-S7-M-PCS (Std Elong Weld Pl...)
Stock Status: True
| GROUP | 7 |
|---|---|
| L1 | 150 |
| L2 | 94 |
| L3 | 136 |
| B | 30 |
| S | 5 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | PHOS STEEL |
AWPE-S7-M-S4
$0.00Attribute: AWPE-S7-M-S4 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 7 |
|---|---|
| L1 | 150 |
| L2 | 94 |
| L3 | 136 |
| B | 30 |
| S | 5 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 304-SS |
AWPE-S7-M-S6
$0.00Attribute: AWPE-S7-M-S6 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 7 |
|---|---|
| L1 | 150 |
| L2 | 94 |
| L3 | 136 |
| B | 30 |
| S | 5 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 316-SS |
AWPE-S7-M-UP
$0.00Attribute: AWPE-S7-M-UP (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 7 |
|---|---|
| L1 | 150 |
| L2 | 94 |
| L3 | 136 |
| B | 30 |
| S | 5 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | UNPLATED |
AWPE-S7-M-ZN
$0.00Attribute: AWPE-S7-M-ZN (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 7 |
|---|---|
| L1 | 150 |
| L2 | 94 |
| L3 | 136 |
| B | 30 |
| S | 5 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | ZINC-NICKEL |
AWPE-S8-M-PCS
$0.00Attribute: AWPE-S8-M-PCS (Std Elong Weld Pl...)
Stock Status: True
| GROUP | 8 |
|---|---|
| L1 | 178 |
| L2 | 120 |
| L3 | 162 |
| B | 30 |
| S | 5 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | PHOS STEEL |
AWPE-S8-M-S4
$0.00Attribute: AWPE-S8-M-S4 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 8 |
|---|---|
| L1 | 178 |
| L2 | 120 |
| L3 | 162 |
| B | 30 |
| S | 5 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 304-SS |
AWPE-S8-M-S6
$0.00Attribute: AWPE-S8-M-S6 (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 8 |
|---|---|
| L1 | 178 |
| L2 | 120 |
| L3 | 162 |
| B | 30 |
| S | 5 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | 316-SS |
AWPE-S8-M-UP
$0.00Attribute: AWPE-S8-M-UP (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 8 |
|---|---|
| L1 | 178 |
| L2 | 120 |
| L3 | 162 |
| B | 30 |
| S | 5 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | UNPLATED |
AWPE-S8-M-ZN
$0.00Attribute: AWPE-S8-M-ZN (Std Elong Weld Pla...)
Stock Status: True
| GROUP | 8 |
|---|---|
| L1 | 178 |
| L2 | 120 |
| L3 | 162 |
| B | 30 |
| S | 5 |
| H | 6.5 |
| D1 | 12 |
| D2 | 6.5 |
| MATERIAL | ZINC-NICKEL |
General Attributes
| Connections | Weld, Metric |
|---|---|
| Shape | Other |
