Description
Standard Series Stacking Bolt UNC
Description
Variations (16)
ASB-S1-U-S6
$15.10Attribute: ASB-S1-U-S6 (Std Stacking Bolt U...)
Stock Status: True

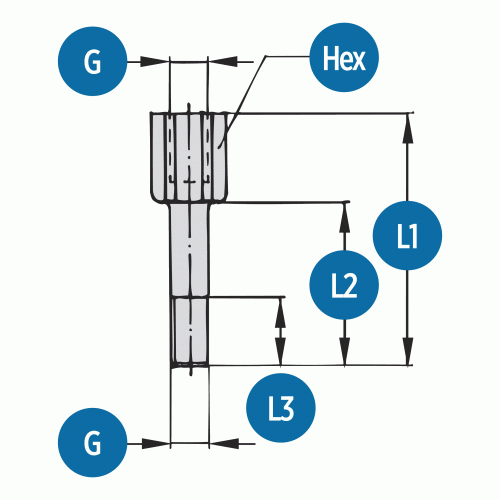

| GROUP | 1 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 1.34 |
| L2 | 0.79 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | 316-SS |
ASB-S1-U-ZN
$4.74Attribute: ASB-S1-U-ZN (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 1 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 1.34 |
| L2 | 0.79 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | ZINC-NICKEL |
ASB-S2-U-S6
$16.12Attribute: ASB-S2-U-S6 (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 2 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 1.57 |
| L2 | 0.98 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | 316-SS |
ASB-S2-U-ZN
$4.53Attribute: ASB-S2-U-ZN (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 2 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 1.57 |
| L2 | 0.98 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | ZINC-NICKEL |
ASB-S3-U-S6
$16.78Attribute: ASB-S3-U-S6 (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 3 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 1.73 |
| L2 | 1.18 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | 316-SS |
ASB-S3-U-ZN
$6.46Attribute: ASB-S3-U-ZN (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 3 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 1.73 |
| L2 | 1.18 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | ZINC-NICKEL |
ASB-S4-U-S6
$19.90Attribute: ASB-S4-U-S6 (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 4 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 1.93 |
| L2 | 1.38 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | 316-SS |
ASB-S4-U-ZN
$6.74Attribute: ASB-S4-U-ZN (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 4 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 1.93 |
| L2 | 1.38 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | ZINC-NICKEL |
ASB-S5-U-S6
$20.94Attribute: ASB-S5-U-S6 (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 5 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 2.52 |
| L2 | 1.97 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | 316-SS |
ASB-S5-U-ZN
$7.09Attribute: ASB-S5-U-ZN (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 5 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 2.52 |
| L2 | 1.97 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | ZINC-NICKEL |
ASB-S6-U-S6
$21.87Attribute: ASB-S6-U-S6 (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 6 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 2.91 |
| L2 | 2.36 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | 316-SS |
ASB-S6-U-ZN
$7.17Attribute: ASB-S6-U-ZN (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 6 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 2.91 |
| L2 | 2.36 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | ZINC-NICKEL |
ASB-S7-U-S6
$25.03Attribute: ASB-S7-U-S6 (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 7 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 3.9 |
| L2 | 3.35 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | 316-SS |
ASB-S7-U-ZN
$11.24Attribute: ASB-S7-U-ZN (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 7 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 3.9 |
| L2 | 3.35 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | ZINC-NICKEL |
ASB-S8-U-S6
$30.38Attribute: ASB-S8-U-S6 (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 8 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 4.88 |
| L2 | 4.33 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | 316-SS |
ASB-S8-U-ZN
$17.87Attribute: ASB-S8-U-ZN (Std Stacking Bolt U...)
Stock Status: True
| GROUP | 8 |
|---|---|
| THREAD G | 1/4?20 UNC |
| L1 | 4.88 |
| L2 | 4.33 |
| L3 | 0.47 |
| HEX | 0.43 |
| MATERIAL | ZINC-NICKEL |
General Attributes
| Connections | Other |
|---|---|
| Shape | Other |
