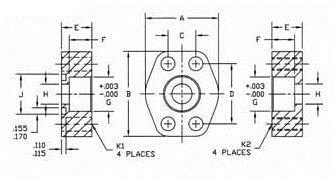

Flat Socket Block Tube Code 62 (O-Ring Face)
Description
Variations (10)
1937-62-12-12
$45.57Attribute: 1937-62-12-12 (12FSWT-12ORF Flan...)
Stock Status: True
| PIPE SIZE | 3/4 |
|---|---|
| FLANGE SIZE | 3/4 |
| A | 2.38 |
| B | 2.81 |
| C | 0.937 |
| D | 2.000 |
| E | 1.25 |
| F | 0.560 |
| G | 0.752 |
| H | 0.63 |
| J MIN | 1.250 |
| J MAX | 1.255 |
| K1 DRILL | 0.406 |
| K2 THREAD | 3/8-16 |
| MATERIAL | STEEL |
1937-62-16-12
$51.22Attribute: 1937-62-16-12 (16FSWT-12ORF Flan...)
Stock Status: True
| PIPE SIZE | 1 |
|---|---|
| FLANGE SIZE | 3/4 |
| A | 2.38 |
| B | 2.81 |
| C | 0.937 |
| D | 2.000 |
| E | 1.25 |
| F | 0.560 |
| G | 1.002 |
| H | 0.75 |
| J MIN | 1.250 |
| J MAX | 1.255 |
| K1 DRILL | 0.406 |
| K2 THREAD | 3/8-16 |
| MATERIAL | STEEL |
1937-62-16-16
$60.94Attribute: 1937-62-16-16 (16FSWT-16ORF Flan...)
Stock Status: True
| PIPE SIZE | 1 |
|---|---|
| FLANGE SIZE | 1 |
| A | 2.75 |
| B | 3.19 |
| C | 1.093 |
| D | 2.250 |
| E | 1.50 |
| F | 0.630 |
| G | 1.002 |
| H | 0.88 |
| J MIN | 1.560 |
| J MAX | 1.565 |
| K1 DRILL | 0.469 |
| K2 THREAD | 7/16-14 |
| MATERIAL | STEEL |
1937-62-20-16
$71.79Attribute: 1937-62-20-16 (20FSWT-16ORF Flan...)
Stock Status: True
| PIPE SIZE | 1-1/4 |
|---|---|
| FLANGE SIZE | 1 |
| A | 2.75 |
| B | 3.19 |
| C | 1.093 |
| D | 2.250 |
| E | 1.50 |
| F | 0.630 |
| G | 1.252 |
| H | 1.00 |
| J MIN | 1560 |
| J MAX | 1.565 |
| K1 DRILL | 0.469 |
| K2 THREAD | 7/16-14 |
| MATERIAL | STEEL |
1937-62-20-20
$92.37Attribute: 1937-62-20-20 (20FSWT-20ORF Flan...)
Stock Status: True
| PIPE SIZE | 1-1/4 |
|---|---|
| FLANGE SIZE | 1-1/4 |
| A | 3.06 |
| B | 3.75 |
| C | 1.250 |
| D | 2.625 |
| E | 1.50 |
| F | 0.690 |
| G | 1.252 |
| H | 1.13 |
| J MIN | 1.750 |
| J MAX | 1.755 |
| K1 DRILL | 0.531 |
| K2 THREAD | 1/2-13 |
| MATERIAL | STEEL |
1937-62-24-20
$148.63Attribute: 1937-62-24-20 (24FSWT-20ORF Flan...)
Stock Status: True
| PIPE SIZE | 1-1/2 |
|---|---|
| FLANGE SIZE | 1-1/4 |
| A | 3.06 |
| B | 3.75 |
| C | 1.250 |
| D | 2.625 |
| E | 1.50 |
| F | 0.690 |
| G | 1.502 |
| H | 1.25 |
| J MIN | 1.750 |
| J MAX | 1.755 |
| K1 DRILL | 0.531 |
| K2 THREAD | 1/2-13 |
| MATERIAL | STEEL |
1937-62-24-24
$136.63Attribute: 1937-62-24-24 (24FSWT-24ORF Flan...)
Stock Status: True
| PIPE SIZE | 1-1/2 |
|---|---|
| FLANGE SIZE | 1-1/2 |
| A | 3.75 |
| B | 4.44 |
| C | 1.437 |
| D | 3.125 |
| E | 1.75 |
| F | 0.750 |
| G | 1.502 |
| H | 1.38 |
| J MIN | 2.115 |
| J MAX | 2.125 |
| K1 DRILL | 0.656 |
| K2 THREAD | 5/8-11 |
| MATERIAL | STEEL |
1937-62-28-24
$126.13Attribute: 1937-62-28-24 (28FSWT-24ORF Flan...)
Stock Status: True
| PIPE SIZE | 1-3/4 |
|---|---|
| FLANGE SIZE | 1-1/2 |
| A | 3.75 |
| B | 4.44 |
| C | 1.437 |
| D | 3.125 |
| E | 1.75 |
| F | 0.750 |
| G | 1.752 |
| H | 1.50 |
| J MIN | 2.115 |
| J MAX | 2.125 |
| K1 DRILL | 0.656 |
| K2 THREAD | 5/8-11 |
| MATERIAL | STEEL |
1937-62-32-32
$198.32Attribute: 1937-62-32-32 (32FSWT-32ORF Flan...)
Stock Status: True
| PIPE SIZE | 2 |
|---|---|
| FLANGE SIZE | 2 |
| A | 4.50 |
| B | 5.25 |
| C | 1.750 |
| D | 3.812 |
| E | 1.75 |
| F | 0.875 |
| G | 2.002 |
| H | 1.88 |
| J MIN | 2.490 |
| J MAX | 2.500 |
| K1 DRILL | 0.781 |
| K2 THREAD | 3/4-10 |
| MATERIAL | STEEL |
1937-62-36-32
$142.46Attribute: 1937-62-36-32 (36FSWT-32ORF Flan...)
Stock Status: True
| PIPE SIZE | 2-1/4 |
|---|---|
| FLANGE SIZE | 2 |
| A | 4.50 |
| B | 5.25 |
| C | 1.750 |
| D | 3.812 |
| E | 1.75 |
| F | 0.875 |
| G | 2.252 |
| H | 2.00 |
| J MIN | 2.490 |
| J MAX | 2.500 |
| K1 DRILL | 0.781 |
| K2 THREAD | 3/4-10 |
| MATERIAL | STEEL |
General Attributes
| Connections | Tube, Flange |
|---|---|
| Shape | Other |
