Flat Socket Block Tube Code 61 (Flat Face)
Description
Variations (10)
1938-61-12-12
$42.08Attribute: 1938-61-12-12 (12FSWT-12FF Flang...)
Stock Status: True
| PIPE SIZE | 3/4 |
|---|---|
| FLANGE SIZE | 3/4 |
| A | 2.06 |
| B | 2.56 |
| C | 0.875 |
| D | 1.875 |
| E | 0.750 |
| F | 0.560 |
| G | 0.752 |
| H | 0.63 |
| J MIN | 1.250 |
| J MAX | 1.255 |
| K1 DRILL | 0.406 |
| K2 THREAD | 3/8-16 |
| MATERIAL | STEEL |
1938-61-16-12
$49.32Attribute: 1938-61-16-12 (16FSWT-12FF Flang...)
Stock Status: True
| PIPE SIZE | 1 |
|---|---|
| FLANGE SIZE | 3/4 |
| A | 2.06 |
| B | 2.56 |
| C | 0.875 |
| D | 1.875 |
| E | 0.750 |
| F | 0.560 |
| G | 1.002 |
| H | 0.75 |
| J MIN | 1.250 |
| J MAX | 1.255 |
| K1 DRILL | 0.406 |
| K2 THREAD | 3/8-16 |
| MATERIAL | STEEL |
1938-61-16-16
$44.51Attribute: 1938-61-16-16 (16FSWT-16FF Flang...)
Stock Status: True
| PIPE SIZE | 1 |
|---|---|
| FLANGE SIZE | 1 |
| A | 2.31 |
| B | 2.75 |
| C | 1.031 |
| D | 2.062 |
| E | 0.880 |
| F | 0.630 |
| G | 1.002 |
| H | 0.88 |
| J MIN | 1.560 |
| J MAX | 1.565 |
| K1 DRILL | 0.406 |
| K2 THREAD | 3/8-16 |
| MATERIAL | STEEL |
1938-61-20-16
$47.48Attribute: 1938-61-20-16 (20FSWT-16FF Flang...)
Stock Status: True
| PIPE SIZE | 1-1/4 |
|---|---|
| FLANGE SIZE | 1 |
| A | 2.31 |
| B | 2.75 |
| C | 1.031 |
| D | 2.062 |
| E | 0.880 |
| F | 0.630 |
| G | 1.252 |
| H | 1.00 |
| J MIN | 1.560 |
| J MAX | 1.565 |
| K1 DRILL | 0.406 |
| K2 THREAD | 3/8-16 |
| MATERIAL | STEEL |
1938-61-20-20
$65.91Attribute: 1938-61-20-20 (20FSWT-20FF Flang...)
Stock Status: True
| PIPE SIZE | 1-1/4 |
|---|---|
| FLANGE SIZE | 1-1/4 |
| A | 2.88 |
| B | 3.12 |
| C | 1.188 |
| D | 2.312 |
| E | 0.940 |
| F | 0.690 |
| G | 1.252 |
| H | 1.13 |
| J MIN | 1.750 |
| J MAX | 1.755 |
| K1 DRILL | 0.469 |
| K2 THREAD | 7/16-14 |
| MATERIAL | STEEL |
1938-61-24-20
$67.55Attribute: 1938-61-24-20 (24FSWT-20FF Flang...)
Stock Status: True
| PIPE SIZE | 1-1/2 |
|---|---|
| FLANGE SIZE | 1-1/4 |
| A | 2.88 |
| B | 3.12 |
| C | 1.188 |
| D | 2.312 |
| E | 0.940 |
| F | 0.690 |
| G | 1.502 |
| H | 1.25 |
| J MIN | 1.750 |
| J MAX | 1.755 |
| K1 DRILL | 0.469 |
| K2 THREAD | 7/16-14 |
| MATERIAL | STEEL |
1938-61-24-24
$97.86Attribute: 1938-61-24-24 (24FSWT-24FF Flang...)
Stock Status: True
| PIPE SIZE | 1-1/2 |
|---|---|
| FLANGE SIZE | 1-1/2 |
| A | 3.25 |
| B | 3.69 |
| C | 1.406 |
| D | 2.750 |
| E | 1.190 |
| F | 0.750 |
| G | 1.502 |
| H | 1.38 |
| J MIN | 2.115 |
| J MAX | 2.125 |
| K1 DRILL | 0.531 |
| K2 THREAD | 1/2-13 |
| MATERIAL | STEEL |
1938-61-28-24
$101.71Attribute: 1938-61-28-24 (28FSWT-24FF Flang...)
Stock Status: True
| PIPE SIZE | 1-3/4 |
|---|---|
| FLANGE SIZE | 1-1/2 |
| A | 3.25 |
| B | 3.69 |
| C | 1.406 |
| D | 2.750 |
| E | 1.190 |
| F | 0.750 |
| G | 1.752 |
| H | 1.50 |
| J MIN | 2.115 |
| J MAX | 2.125 |
| K1 DRILL | 0.531 |
| K2 THREAD | 1/2-13 |
| MATERIAL | STEEL |
1938-61-32-32
$124.24Attribute: 1938-61-32-32 (32FSWT-32FF Flang...)
Stock Status: True
| PIPE SIZE | 2 |
|---|---|
| FLANGE SIZE | 2 |
| A | 3.81 |
| B | 4.00 |
| C | 1.688 |
| D | 3.062 |
| E | 1.375 |
| F | 0.875 |
| G | 2.002 |
| H | 1.88 |
| J MIN | 2.490 |
| J MAX | 2.500 |
| K1 DRILL | 0.531 |
| K2 THREAD | 1/2-13 |
| MATERIAL | STEEL |
1938-61-36-32
$140.11Attribute: 1938-61-36-32 (36FSWT-32FF Flang...)
Stock Status: True
| PIPE SIZE | 2-1/4 |
|---|---|
| FLANGE SIZE | 2 |
| A | 3.81 |
| B | 4.00 |
| C | 1.688 |
| D | 3.062 |
| E | 1.375 |
| F | 0.875 |
| G | 2.252 |
| H | 2.00 |
| J MIN | 2.490 |
| J MAX | 2.500 |
| K1 DRILL | 0.531 |
| K2 THREAD | 1/2-13 |
| MATERIAL | STEEL |
General Attributes
| Connections | Tube, Flange |
|---|---|
| Shape | Other |
PDF Documents

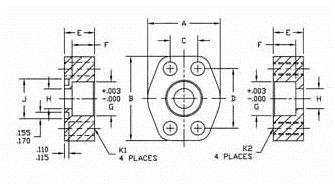

Download CAD and Drawings
