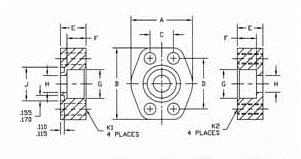

1936-62

Attribute: 1936-62-08-08 (08FSWP-08FF Flang...)

Stock Status: True

PIPE SIZE	1/2
FLANGE SIZE	1/2
A	1.94
B	2.30
C	0.718
D	1.594
E	0.57
F	0.560
G	0.855
H	0.50
J MIN	1.000
J MAX	1.005
K1 DRILL	0.344
K2 THREAD	5/16-18
MATERIAL	STEEL

Attribute: 1936-62-12-12 (12FSWP-12FF Flang...)

Stock Status: True

PIPE SIZE	3/4
FLANGE SIZE	3/4
A	2.38
B	2.81
C	0.937
D	2.000
E	1.25
F	0.560
G	1.063
H	0.75
J MIN	1.250
J MAX	1.255
K1 DRILL	0.406
K2 THREAD	3/8-16
MATERIAL	STEEL

Attribute: 1936-62-16-16 (16FSWP-16FF Flang...)

Stock Status: True

PIPE SIZE	1
FLANGE SIZE	1
A	2.75
B	3.19
C	1.093
D	2.250
E	1.50
F	0.630
G	1.328
H	1.00
J MIN	1.560
J MAX	1.565
K1 DRILL	0.469
K2 THREAD	7/16-14
MATERIAL	STEEL

Attribute: 1936-62-20-20 (20FSWP-20FF Flang...)

Stock Status: True

PIPE SIZE	1-1/4
FLANGE SIZE	1-1/4
A	3.06
B	3.75
C	1.250
D	2.625
E	1.50
F	0.690
G	1.672
H	1.25
J MIN	1.750
J MAX	1.755
K1 DRILL	0.531
K2 THREAD	1/2-13
MATERIAL	STEEL

Attribute: 1936-62-24-24 (24FSWP-24FF Flang...)

Stock Status: True

PIPE SIZE	1-1/2
FLANGE SIZE	1-1/2
A	3.75
B	4.44
C	1.437
D	3.125
E	1.75
F	0.750
G	1.922
H	1.50
J MIN	2.115
J MAX	2.125
K1 DRILL	0.656
K2 THREAD	5/8-11
MATERIAL	STEEL

Attribute: 1936-62-32-32 (32FSWP-32FF Flang...)

Stock Status: True

PIPE SIZE	2
FLANGE SIZE	2
A	4.50
B	5.25
C	1.750
D	3.812
E	1.75
F	0.875
G	2.406
H	2.00
J MIN	2.490
J MAX	2.500
K1 DRILL	0.781
K2 THREAD	3/4-10
MATERIAL	STEEL

Attribute: 1936-62-40-40 (40FSWP-40FF Flang...)

Stock Status: True

PIPE SIZE	2-1/2
FLANGE SIZE	2-1/2
A	5.87
B	6.87
C	2.312
D	4.875
E	2.06
F	1.000
G	2.906
H	2.50
J MIN	2.995
J MAX	3.005
K1 DRILL	0.906
K2 THREAD	7/8-9
MATERIAL	STEEL

Attribute: 1936-62-48-48 (48FSWP-48FF Flang...)

Stock Status: True

PIPE SIZE	3
FLANGE SIZE	3
A	7.00
B	8.50
C	2.812
D	6.000
E	2.62
F	1.250
G	3.547
H	3.00
J MIN	3.615
J MAX	3.625
K1 DRILL	1.156
K2 THREAD	11/8-7
MATERIAL	STEEL
