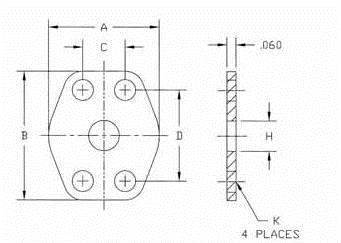

1914-61

Attribute: 1914-61-08 (08 Flange Connector ...)

Stock Status: True

FLANGE SIZE	1/2
A	1.810
B	2.12
C	0.688
D	1.500
H	0.500
K DRILL	0.344
MATERIAL	STEEL

Attribute: 1914-61-12 (12 Flange Connector ...)

Stock Status: True

FLANGE SIZE	3/4
A	2.060
B	2.560
C	0.875
D	1.875
H	0.750
K DRILL	0.406
MATERIAL	STEEL

Attribute: 1914-61-16 (16 Flange Connector ...)

Stock Status: True

FLANGE SIZE	1
A	2.310
B	2.750
C	1.031
D	2.062
H	1.000
K DRILL	0.406
MATERIAL	STEEL

Attribute: 1914-61-20 (20 Flange Connector ...)

Stock Status: True

FLANGE SIZE	1 1/4
A	2.880
B	3.120
C	1.188
D	2.312
H	1.250
K DRILL	0.469
MATERIAL	STEEL

Attribute: 1914-61-24 (24 Flange Connector ...)

Stock Status: True

FLANGE SIZE	1 1/2
A	3.250
B	3.690
C	1.406
D	2.750
H	1.500
K DRILL	0.531
MATERIAL	STEEL

Attribute: 1914-61-32 (32 Flange Connector ...)

Stock Status: True

FLANGE SIZE	2
A	3.810
B	4.000
C	1.688
D	3.062
H	2.000
K DRILL	0.531
MATERIAL	STEEL

Attribute: 1914-61-40 (40 Flange Connector ...)

Stock Status: True

FLANGE SIZE	2 1/2
A	4.120
B	4.440
C	2.000
D	3.500
H	2.500
K DRILL	0.531
MATERIAL	STEEL

Attribute: 1914-61-48 (48 Flange Connector ...)

Stock Status: True

FLANGE SIZE	3
A	5.160
B	5.310
C	2.438
D	4.188
H	3.000
K DRILL	0.656
MATERIAL	STEEL
