1904-62

Attribute: 1904-62-12 (12 Captive Flange wi...)

Stock Status: True

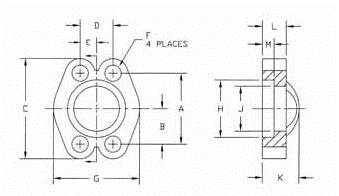

FLANGE SIZE	3/4
A .010	2.000
B .010	1.000
C .030	2.81
D .010	0.938
E .010	0.469
F .010	0.406
F THREAD	3/8-16
G .030	2.38
H .010	1.656
J .010	1.280
K .010	1.12
L .010	0.75
M .005	0.325
MATERIAL	STEEL

Attribute: 1904-62-16 (16 Captive Flange wi...)

Stock Status: True

FLANGE SIZE	1
A .010	2.250
B .010	1.125
C .030	3.19
D .010	1.094
E .010	0.547
F .010	0.469
F THREAD	7/16-14
G .030	2.75
H .010	1.906
J .010	1.530
K .010	1.31
L .010	0.94
M .005	0.355
MATERIAL	STEEL

Attribute: 1904-62-20 (20 Captive Flange wi...)

Stock Status: True

FLANGE SIZE	1 1/4
A .010	2.625
B .010	1.313
C .030	3.75
D .010	1.250
E .010	0.625
F .010	0.531
F THREAD	1/2-13
G .030	3.06
H .010	2.156
J .010	1.750
K .010	1.50
L .010	1.06
M .005	0.385
MATERIAL	STEEL

Attribute: 1904-62-24 (24 Captive Flange wi...)

Stock Status: True

FLANGE SIZE	1 1/2
A .010	3.125
B .010	1.563
C .030	4.44
D .010	1.438
E .010	0.719
F .010	0.656
F THREAD	5/8-11
G .030	3.75
H .010	2.531
J .010	2.030
K .010	1.69
L .010	1.19
M .005	0.475
MATERIAL	STEEL

Attribute: 1904-62-32 (32 Captive Flange wi...)

Stock Status: True

FLANGE SIZE	2
A .010	3.812
B .010	1.906
C .030	5.25
D .010	1.750
E .010	0.875
F .010	0.781
F THREAD	3/4-10
G .030	4.50
H .010	3.156
J .010	2.660
K .010	2.06
L .010	1.44
M .005	0.475
MATERIAL	STEEL
