1903-61

Attribute: 1903-61-08 (08 Captive Flange wi...)

Stock Status: True

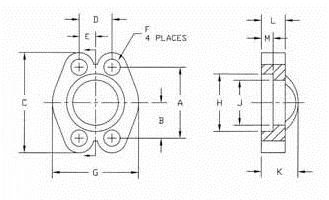

FLANGE SIZE	1/2
A .010	1.500
B .010	0.750
C .030	2.12
D .010	0.688
E .010	0.344
F .010	0.344
F THREAD	5/16-18
G .030	1.81
H .010	1.219
J .010	0.955
K .010	0.75
L .010	0.50
M .005	0.245
MATERIAL	STEEL

Attribute: 1903-61-12 (12 Captive Flange wi...)

Stock Status: True

FLANGE SIZE	3/4
A .010	1.875
B .010	0.938
C .030	2.56
D .010	0.875
E .010	0.438
F .010	0.406
F THREAD	3/8-16
G .030	2.06
H .010	1.531
J .010	1.265
K .010	0.88
L .010	0.56
M .005	0.245
MATERIAL	STEEL

Attribute: 1903-61-16 (16 Captive Flange wi...)

Stock Status: True

FLANGE SIZE	1
A .010	2.062
B .010	1.031
C .030	2.75
D .010	1.031
E .010	0.516
F .010	0.406
F THREAD	3/8-16
G .030	2.31
H .010	1.781
J .010	1.515
K .010	0.94
L .010	0.62
M .005	0.295
MATERIAL	STEEL

Attribute: 1903-61-20 (20 Captive Flange wi...)

Stock Status: True

FLANGE SIZE	1 1/4
A .010	2.312
B .010	1.156
C .030	3.12
D .010	1.188
E .010	0.594
F .010	0.469
F THREAD	7/16-14
G .030	2.88
H .010	2.031
J .010	1.720
K .010	0.88
L .010	0.56
M .005	0.295
MATERIAL	STEEL

Attribute: 1903-61-24 (24 Captive Flange wi...)

Stock Status: True

FLANGE SIZE	1 1/2
A .010	2.750
B .010	1.375
C .030	3.69
D .010	1.406
E .010	0.703
F .010	0.531
F THREAD	1/2-13
G .030	3.25
H .010	2.406
J .010	2.000
K .010	1.00
L .010	0.62
M .005	0.295
MATERIAL	STEEL

Attribute: 1903-61-32 (32 Captive Flange wi...)

Stock Status: True

FLANGE SIZE	2
A .010	3.062
B .010	1.531
C .030	4.00
D .010	1.688
E .010	0.844
F .010	0.531
F THREAD	1/2-13
G .030	3.81
H .010	2.844
J .010	2.470
K .010	1.03
L .010	0.62
M .005	0.355
MATERIAL	STEEL

Attribute: 1903-61-40 (40 Captive Flange wi...)

Stock Status: True

FLANGE SIZE	2 1/2
A .010	3.500
B .010	1.750
C .030	4.50
D .010	2.000
E .010	1.000
F .010	0.531
F THREAD	1/2-13
G .030	4.28
H .010	3.344
J .010	2.950
K .010	1.50
L .010	0.75
M .005	0.355
MATERIAL	STEEL

Attribute: 1903-61-48 (48 Captive Flange wi...)

Stock Status: True

FLANGE SIZE	3
A .010	4.188
B .010	2.094
C .030	5.31
D .010	2.438
E .010	1.219
F .010	0.656
F THREAD	5/8-11
G .030	5.16
H .010	4.031
J .010	3.580
K .010	1.62
L .010	0.88
M .005	0.355
MATERIAL	STEEL

Attribute: 1903-61-56 (56 Captive Flange wi...)

Stock Status: True

FLANGE SIZE	3 1/2
A .010	4.750
B .010	2.375
C .030	6.00
D .010	2.750
E .010	1.375
F .010	0.656
F THREAD	5/8-11
G .030	5.50
H .010	4.531
J .010	4.030
K .010	1.12
L .010	0.88
M .005	0.422
MATERIAL	STEEL

Attribute: 1903-61-64 (64 Captive Flange wi...)

Stock Status: True

FLANGE SIZE	4
A .010	5.125
B .010	2.562
C .030	6.38
D .010	3.062
E .010	1.531
F .010	0.656
F THREAD	5/8-11
G .030	6.00
H .010	5.031
J .010	4.530
K .010	1.38
L .010	1.00
M .005	0.422
MATERIAL	STEEL
