6400-LL-O

Attribute: 6400-LL-06-08-O (06MJ-08MORB Str...)

Stock Status: True

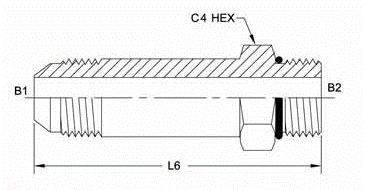

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE O-RING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	3.025
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

Attribute: 6400-LL-16-16-O (16MJ-16MORB Str...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE O-RING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
OVERALL LENGTH L IN	5.270
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8
CALIFORNIA RESIDENTS	PROP-65 WARNING

Attribute: 6400-LL-16-16-O-SS (16MJ-16MORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE O-RING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
OVERALL LENGTH L IN	5.270
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING
