Attributes
| Part Number | 8900-18 |
|---|---|
| Is Series Page | 0 |
Description

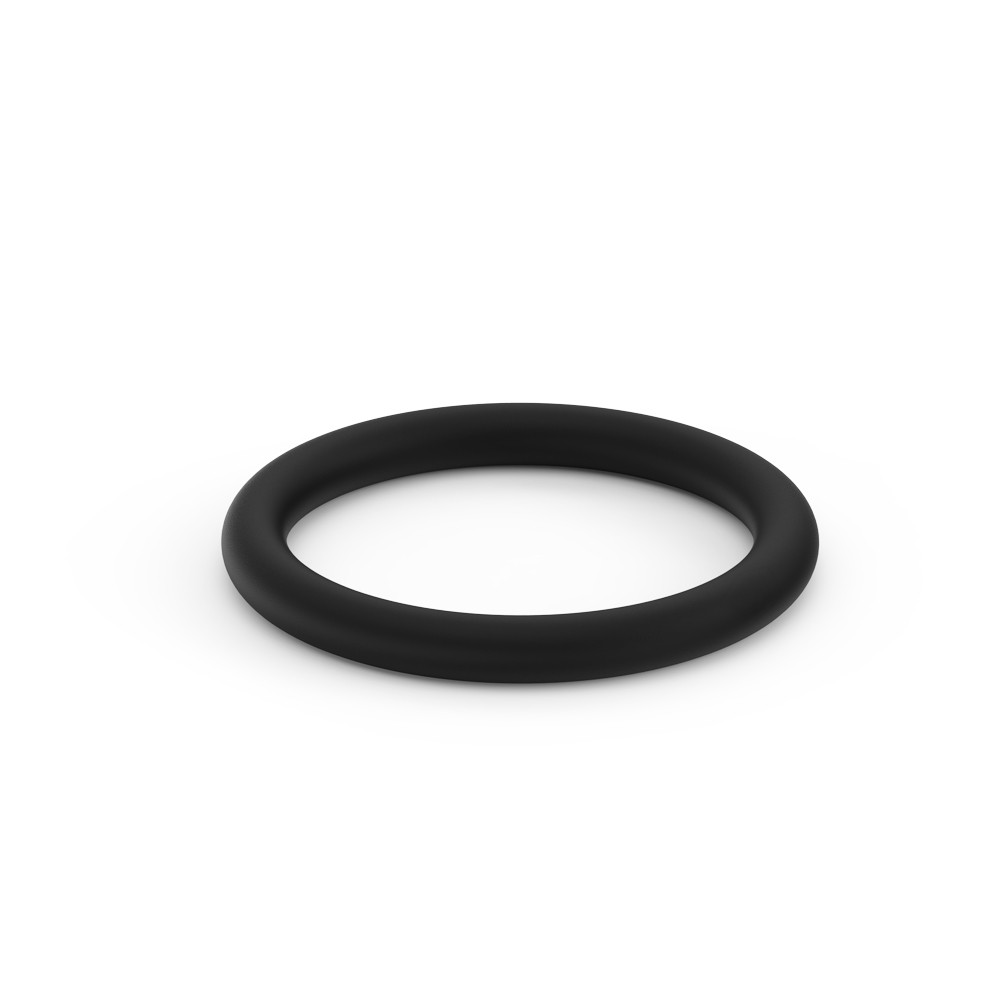

Nitrile, ISO 6149 Metric Seal for 18mm Metric ORB Port
Specifications
| Specifications | {"Nominal OD":"18mm","Exact OD":"19.7mm","Exact ID":"15.3mm","Exact Width":"2.2mm","Color":"Black","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)","Temperature":"-40°F to 250°F","Dash Size":"-M18","Seal Hardness":"90 Durometer"} |
|---|---|
| Application & Performance | {"Chemical Resistance":"Petroleum oils, mineral oils, fuels, diesel, gasoline, hydraulic fluids, aliphatic hydrocarbons, water (below 150°F), natural gas, air","Not Recommended For":"Phosphate ester fluids, glycol-based brake fluids, strong acids, ozone, weathering, ketones, esters, chlorinated hydrocarbons"} |
| Cross References | {"Parker TFD Part Number":"2-114 NBR"} |
| Shape | Washer |
