Attributes
| Part Number | FS4000-06 |
|---|---|
| Is Series Page | 0 |
Description

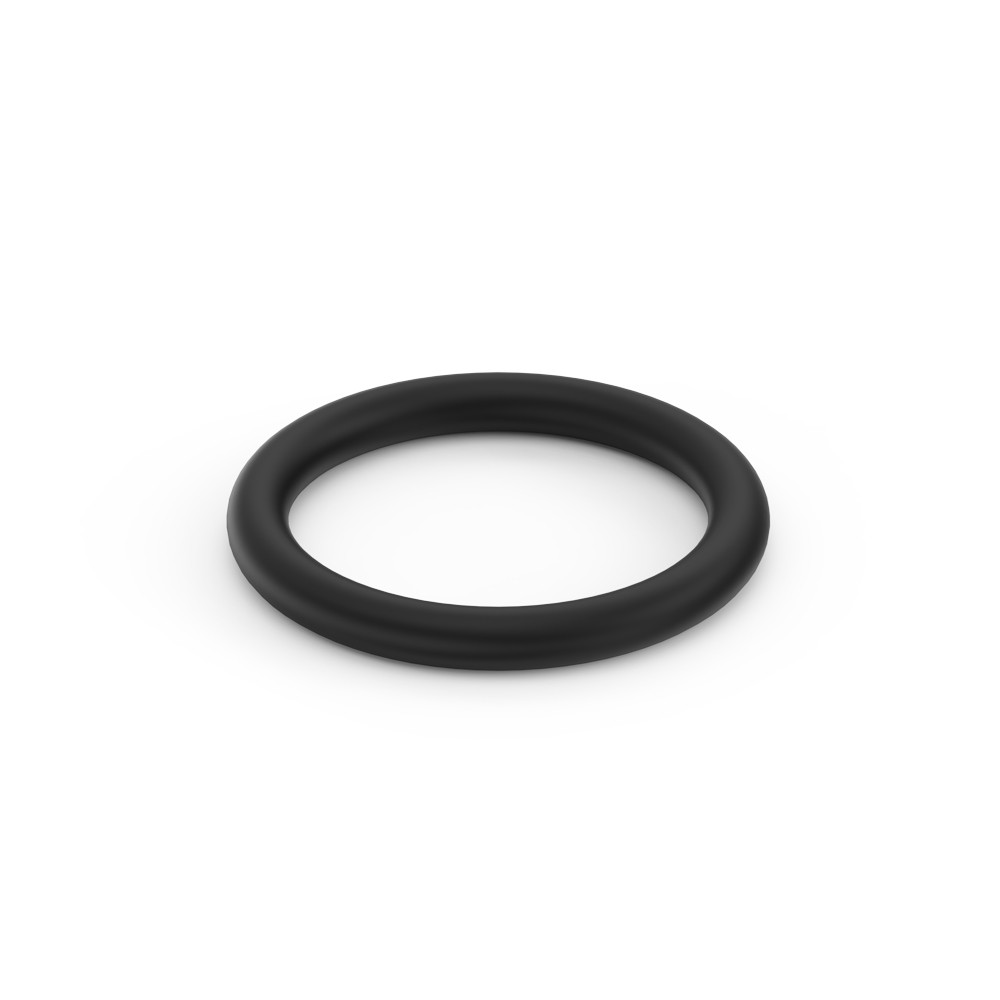

Nitrile, SAE ORFS O-Ring Seal for 3/8" Tube OD ORFS
Specifications
| Specifications | {"Nominal OD":"1/2\"","Exact OD":"0.504\"","Exact ID":"0.364\"","Exact Width":"0.07\"","Color":"Black","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)","Temperature":"-40°F to 250°F","Dash Number":"-012","Dash Size":"-06","Seal Hardness":"90 Durometer"} |
|---|---|
| Application & Performance | {"Chemical Resistance":"Petroleum oils, mineral oils, fuels, diesel, gasoline, hydraulic fluids, aliphatic hydrocarbons, water (below 150°F), natural gas, air","Not Recommended For":"Phosphate ester fluids, glycol-based brake fluids, strong acids, ozone, weathering, ketones, esters, chlorinated hydrocarbons"} |
| Cross References | {"Aeroquip Part Number":"FF9446-12","Parker Hose Part Number":"J0RG-6","Parker TFD Part Number":"2-012 NBR"} |
| Shape | O-Ring |
PDF Documents
No PDF documents.
