Attributes
| Part Number | 9034-20-20-SS |
|---|---|
| Is Series Page | 0 |
Description

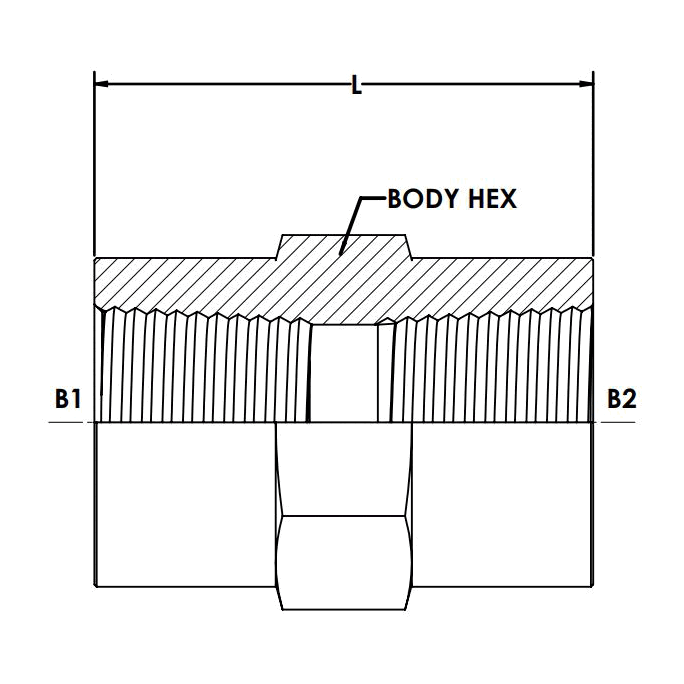

Stainless Steel, ISO 7-1 (Type R) BSPT Coupling, 1-1/4" Female BSPT x 1-1/4" Female BSPT
Specifications
| Connection Details | {"Side 1 Connection Type":"Female BSPT","Side 1 Pipe Size":"1-1/4\"","Side 1 Thread Type":"R - 1-1/4-11","Side 1 Standard":"ISO 7-1","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Female BSPT","Side 2 Pipe Size":"1-1/4\"","Side 2 Thread Type":"R - 1-1/4-11","Side 2 Standard":"ISO 7-1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Coupling","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"1.969","Weight":"0.69 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female BSPT x Female BSPT |
| Technical Series Configuration | ISO 7-1 Female BSPT Pipe x ISO 7-1 Female BSPT Pipe Coupling |
| Side 1 Connection Type | Female BSPT |
| Side 2 Connection Type | Female BSPT |
| Shape | Straight |
| Product Type | Fittings |
