Attributes
| Part Number | 4005-24-VITON |
|---|---|
| Is Series Page | 0 |
Description

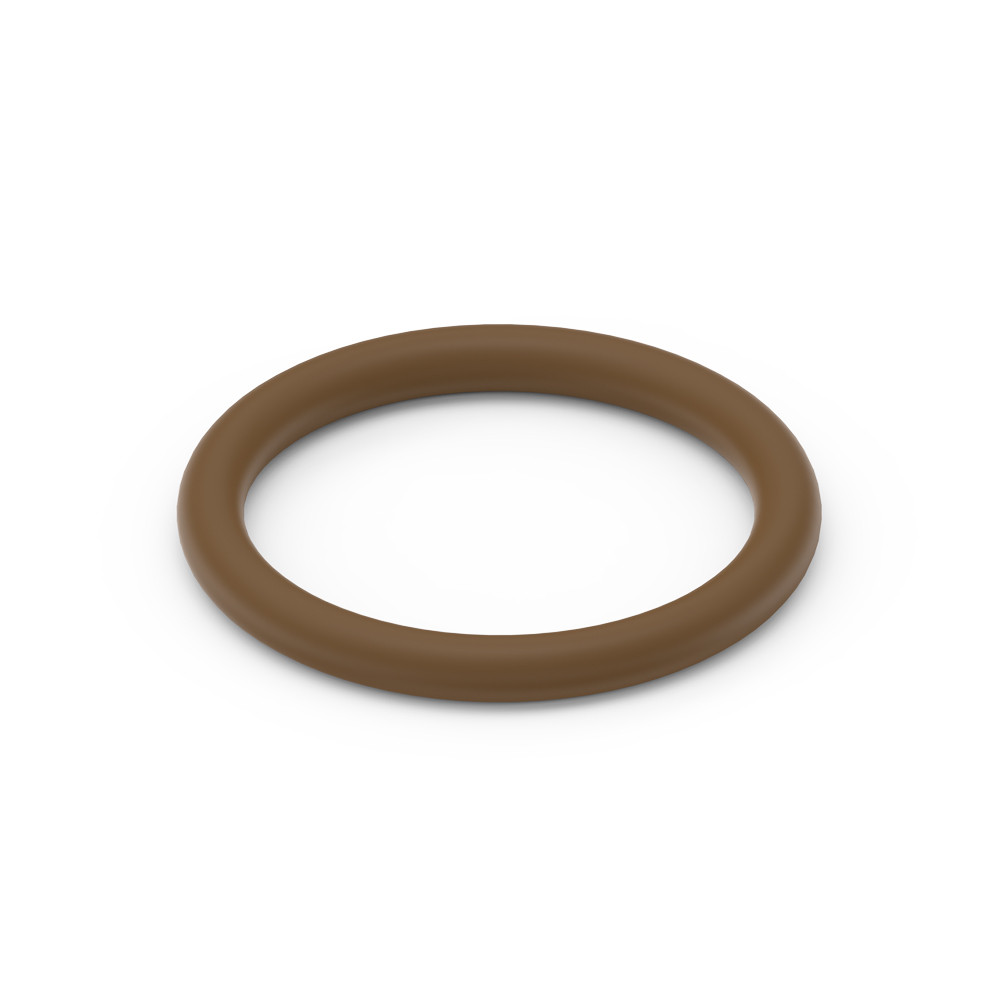

Fluorocarbon, SAE Flange O-Ring Seal for -24 Flange Size
Specifications

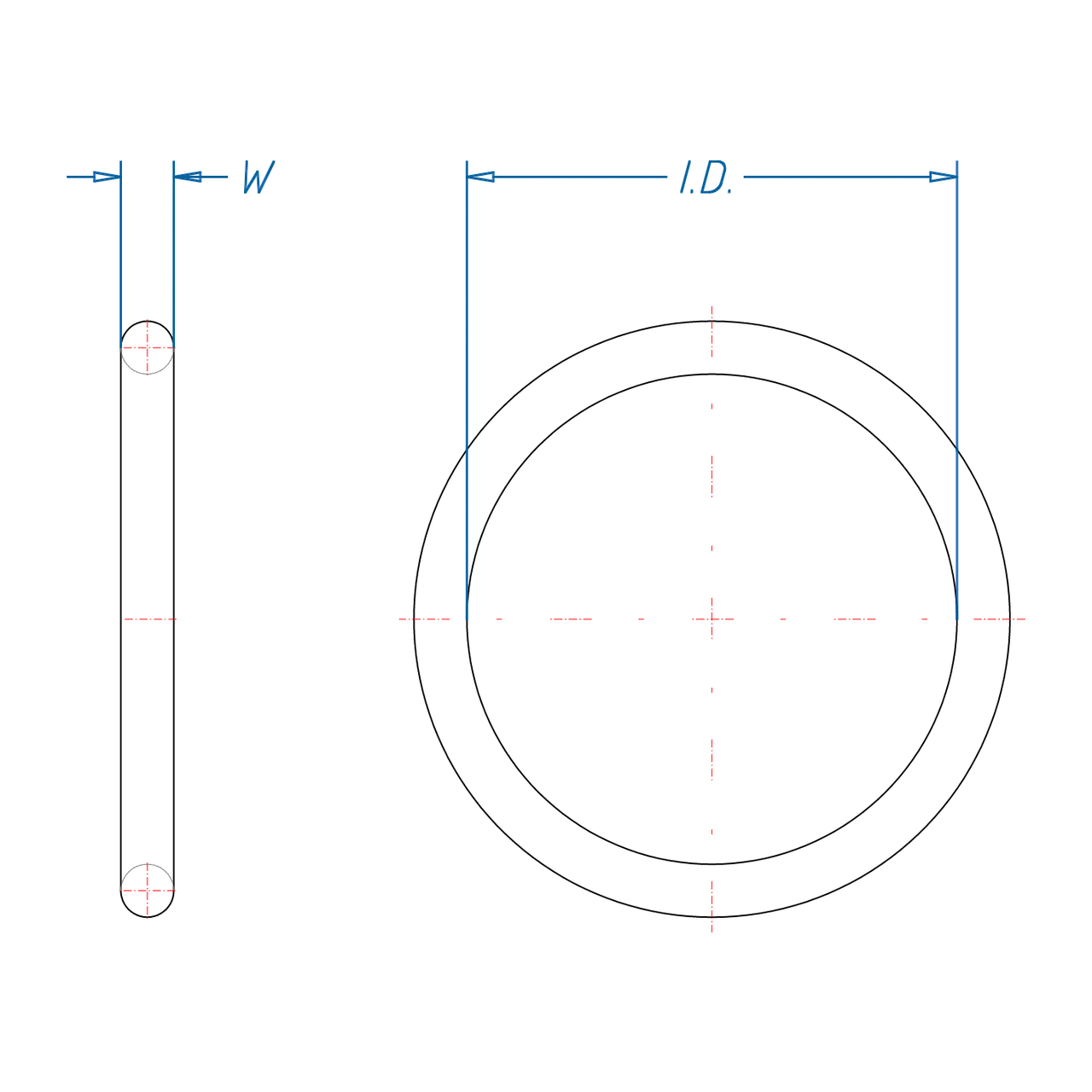

| Specifications | {"Nominal OD":"1-1/2\"","Exact OD":"2.139\"","Exact ID":"1.859\"","Exact Width":"0.139\"","Color":"Brown","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)","Temperature":"-15°F to 400°F","Dash Number":"-225","Dash Size":"-24","Seal Hardness":"90 Durometer"} |
|---|---|
| Application & Performance | {"Chemical Resistance":"Petroleum oils, mineral oils, synthetic lubricants, fuels, diesel, gasoline, hydraulic oils, phosphate ester fluids, silicone oils and greases, diester lubricants, aromatic hydrocarbons, many chlorinated hydrocarbons, mild acids","Not Recommended For":"Ketones, amines, low molecular weight esters and ethers, hot hydrofluoric acids, strong alkalis, steam, hot water, glycol-based brake fluids"} |
| Cross References | {"Aeroquip Part Number":"22046-225"} |
| Shape | O-Ring |
PDF Documents
No PDF documents.
